Triangular handle
GN 5339.5-32-M5-E-MT Stainless steel, threaded blind holeNI - Stainless steel investment casting
Item-no.: 1205365Supplier number: 5339.5-32-M5-E-MTEAN: 4045525453616
PU (Packaging): 20 PieceQuantity:
1 PiecePackable
Item available in 28 variants:
Price and stock visible after login
Description
Stainless steel triangular knobs GN 5339.5 have been specially designed for use on machinery in the food industry. The smooth and enclosed areas as well as the corner radii comply with the requirements of hygiene standards. Original ELESA design, now produced in metal in agreement with ELESA S.p.a.

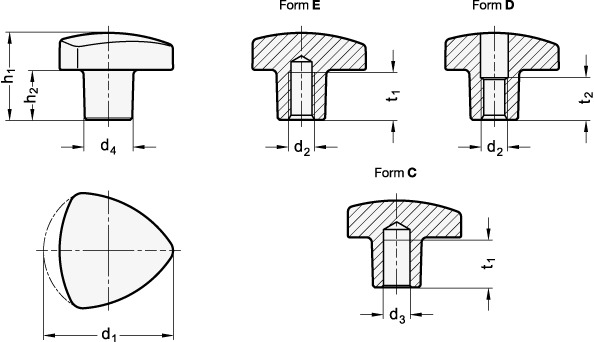

Attributes
Form
E - with threaded blind hole
Handle diameter d1
32
Material
NI - Stainless steel investment casting
RoHS
Ja
Screw thread d2 (Form E)
M 5
Surface
MT - matt blasted
Weight
0.060 kg
d4
12
h1
21
h2
12
t1min.
10
