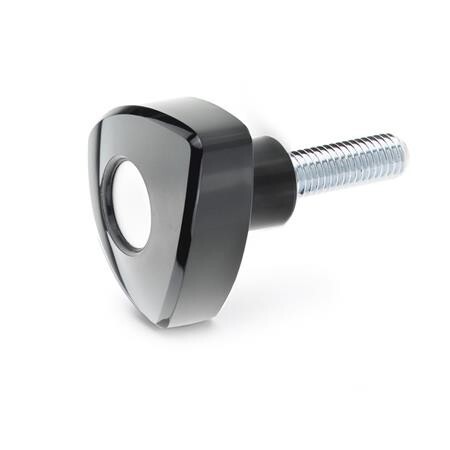

Triangular handle with external thread
GN 5339-32-M5-10-SW Elesa 83041PA - plastic, polyamide
Item-no.: 1205392Supplier number: 5339-32-M5-10-SWEAN: 4045525282933
Quantity:
1 PiecePackable
Item available in 24 variants:
Price and stock visible after login
Description
Triangular knobs with threaded stud GN 5339 impress by their elegant shape and gleaming color.
Attributes
Colour
SW - black, RAL 9005

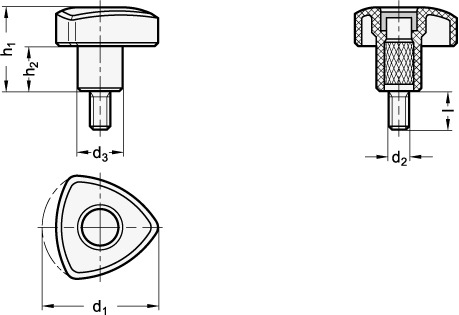

Handle diameter d1
32
Length l
10
Material
PA - plastic, polyamide
RoHS
Ja
Screw thread d2
M 5
Weight
0.009 kg
d3
14
h1
26
h2
16
