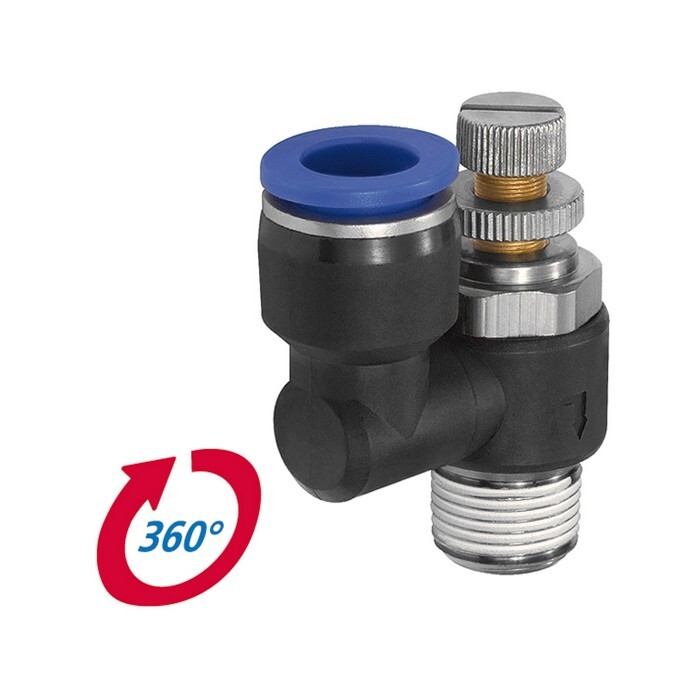

Throttle check valve blue series
Supply air dam. M5 outsideItem-no.: 1374076Supplier number: 298.005-6customs tariff number: 84813099EAN: 4047322499958
Quantity:
1 PiecePackable
Item available in 11 variants:
Price and stock visible after login
Description
Throttle check valve »Blue Series«, Supply air throttle, M5 o., for hose exterior Ø 6 mm, pmax short term 15bar. Push-in fittings series manufactured in plastic and nickel-plated brass. All parts are suitable for use with hoses, tubes or pipes made of plastic.
Attributes
Application range
Air, vacuum
Arbeitsdruck max. kurzzeitig
15 bar
For outer hose Ø
6 mm
L1
33,5 mm
L2
13,0 mm
Loosening ring
Plastic
Material
Plastic or nickel-plated brass
Medium
Compressed air, neutral and non-hazardous gases and liquids
Product range
Blue series
Recommended hose
PU or PA (nylon)
Riegler article number
136033
SW
8 mm
Screw thread
M5
Sealing material
NBR
Temperature range max.
60 °C
Temperature range min.
0 °C
Working pressure max.
10 bar
Working pressure min.
-0,95 bar
l3
22,0 mm
