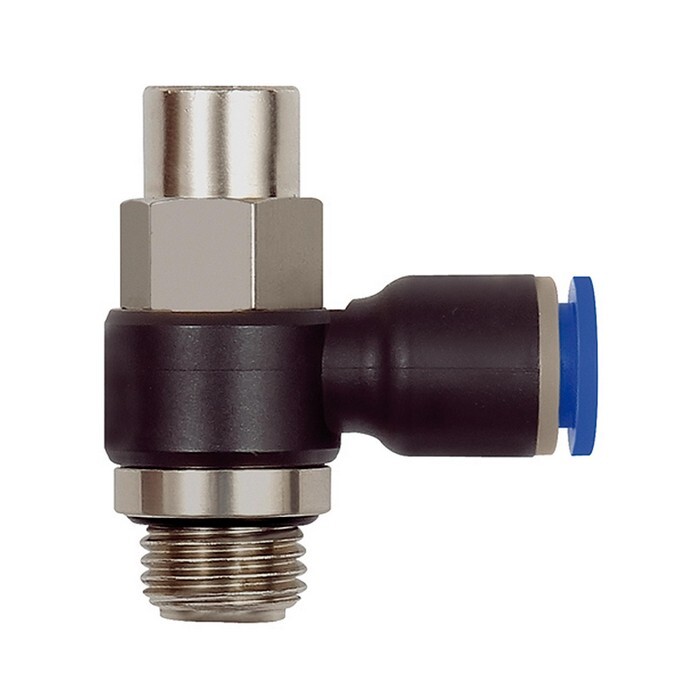

Drosselrückschlagventil Winkelform
AG 1/4", SW14, SD4, drehbar, Abluft Blaue Serie, Kunststoff, mit O-RingItem-no.: 1247105Supplier number: 285.014-4EAN: 4047322387415
Quantity:
1 PiecePackable
Item available in 16 variants:
Price and stock visible after login
Description
Throttle check valve »Blue Series«, Discharge throttle, G 1/4 o., for hose exterior Ø 4 mm, pmax short term 15bar. Push-in fittings series manufactured in plastic and nickel-plated brass. All parts are suitable for use with hoses, tubes or pipes made of plastic.
Attributes
Application range
Air, vacuum
Arbeitsdruck max. kurzzeitig
15 bar
Arbeitsdruck min.
-0,95 bar
Dichtmaterial
NBR
For outer hose Ø
4 mm
L1
25 mm
Loosening ring
Plastic
Material
Plastic or nickel-plated brass
Medium
Compressed air, neutral and non-hazardous gases and liquids
Product range
Blue series
Recommended hose
PU or PA (nylon)
Riegler article number
110033
SW
14 mm
Screw thread
G 1/4
Serie
Blaue Serie
Temperature range max.
80 °C
Temperature range min.
-20 °C
Working pressure max.
10 bar
l2 Min.
38,3 mm
