Pferd

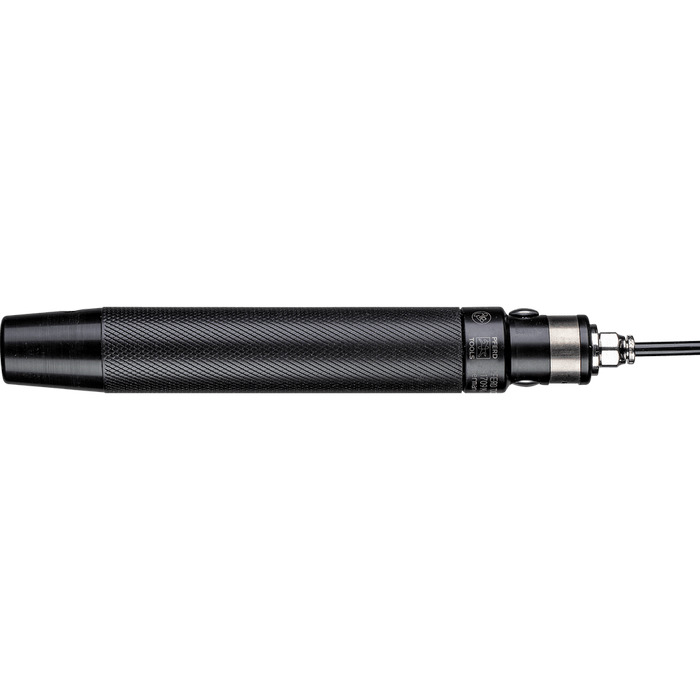

Compressed air filer

PF 4/84 SV Pferd
Item-no.: 1470393Supplier number: 80600210EAN: 4007220388105

Quantity: ​​ 1 PiecePackable
Short-term Sourcing

Description
Filing machine for mechanical machining processes for filing, grinding and polishing with smooth running and high precision. The exhaust air flow is at the front. The air-powered filing machine is suitable for tools with a mounting dia. of 3 to 4 mm. The drive has to be used with oil. 1.5 m air supply hose with 1/4" male threaded connection and threaded quick coupling (STGI), 1 key. The drive comes with a push-pull throttle for convenient continuous use.
Attributes
Air consumption, at load
0.03 m³/min
Air consumption, idling
0.03 m³/min
Exhaust air outlet
front
Frequency, from
8400 Lift/min
Height
30 mm
Inner-ø supply air hose
3 mm
Length metric
200 mm
Neu im Jahr
2022
Number of oil droplets (min)
1 Drops
Operating pressure
6.3 bar
Stroke length
4 mm
Valve design
Slide
Width metric
30 mm
