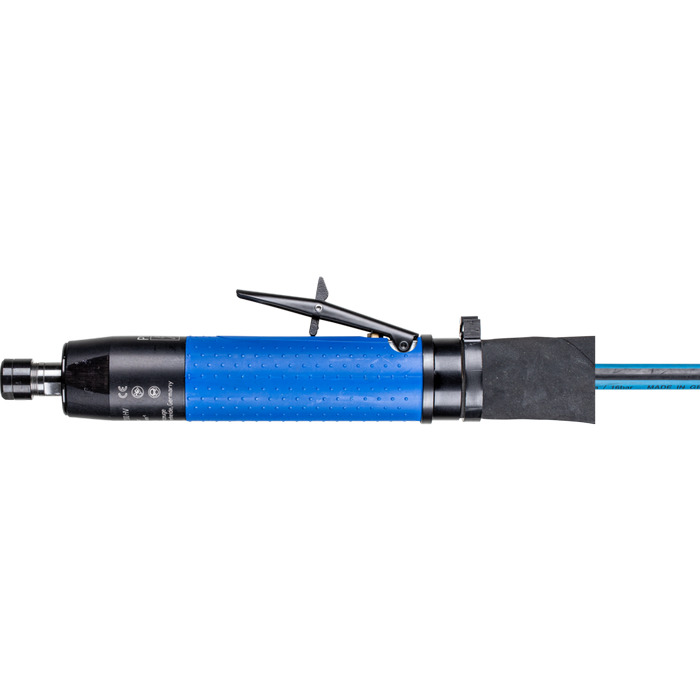

Compressed air straight grinder
10/200 HV PferdItem-no.: 1470398Supplier number: 80101046EAN: 4007220382257
Quantity:
1 PiecePackable
Price and stock visible after login
Description
The drive is equipped with a collet tool mounting for mounted tools. The exhaust air flow of the air grinder is at the back. The air grinder has to be used with oil. Due to the lever valve, the drive has a dead man's switch. 1 m exhaust hose and 2.5 m air supply hose with 1/2" male threaded connection, 6 mm collet, 2 keys.
Attributes
Air consumption, at load
1.1 m³/min
Air consumption, idling
1.38 m³/min
Collet group
16
Exhaust air outlet
back
Height
46 mm
Incl. Ø collet [mm]
6 mm
Inner-ø supply air hose
13 mm
Length metric
263 mm
Net weight
1.234 kg
Neu im Jahr
2022
Number of oil droplets (min)
7 Drops
Operating pressure
6.3 bar
Power
1000 Watt
Rotational speed
20000 RPM
Valve design
Lever
Version
without extension
Width metric
46 mm
