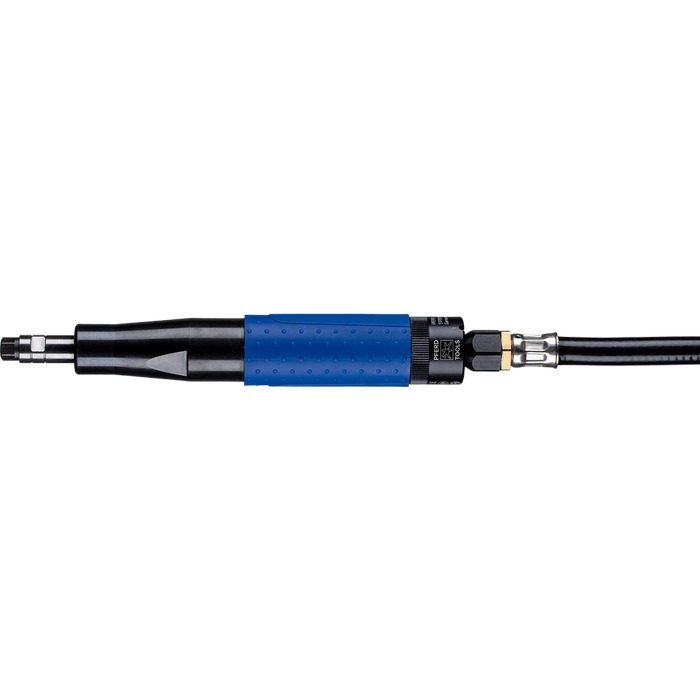

Compressed air straight grinder
3/300 Z-DV PferdItem-no.: 1470408Supplier number: 80106023EAN: 4007220395165
Quantity:
1 PiecePackable
Price and stock visible after login
Description
The drive is equipped with a collet tool mounting for mounted tools. The exhaust air flow is at the front. The slim air grinder with two-handed operation has to be used with oil. 2.5 m air supply hose with 1/4" male threaded connection and threaded quick coupling (STGI), 6 mm collet, 2 keys. The drive has a ring throttle version.
Attributes
Air consumption, at load
0.5 m³/min
Air consumption, idling
0.6 m³/min
Collet group
10
Exhaust air outlet
front
Height
30 mm
Incl. Ø collet [mm]
6 mm
Inner-ø supply air hose
8 mm
Length metric
197 mm
Neu im Jahr
2022
Number of oil droplets (min)
2 Drops
Operating pressure
6.3 bar
Power
290 Watt
Rotational speed
30000 RPM
Valve design
Turn
Width metric
30 mm
