Pferd

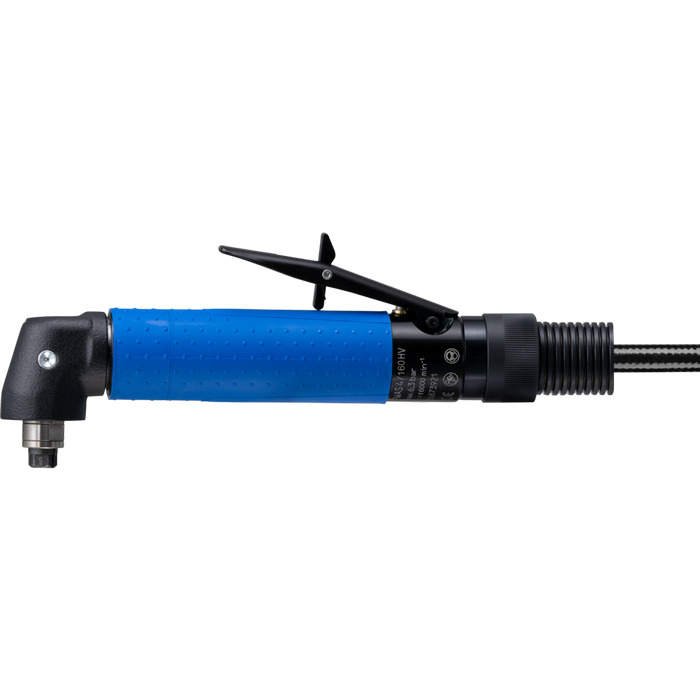

Compressed air straight grinder

4/160 HV Pferd
Item-no.: 1470412Supplier number: 80209016EAN: 4007220417096

Quantity: ​​ 1 PiecePackable
Short-term Sourcing

Description
The drive is equipped with a collet tool mounting for mounted tools. The exhaust air flow of the air grinder is at the back. Thanks to its low angle head height, the air grinder is ideal for working in hard-to-reach areas. The integrated centrifugal governor ensures constant power delivery. The drive has to be used with oil. 1 m exhaust hose and 2.5 m air supply hose with 1/4" male threaded connection and threaded quick coupling (STGI), 6 mm collet, 2 keys. Due to the lever valve, the drive has a dead man's switch.
Attributes
Air consumption, at load
0.6 m³/min
Air consumption, idling
0.55 m³/min
Collet group
6
Exhaust air outlet
back
Height
67 mm
Incl. Ø collet [mm]
6 mm
Inner-ø supply air hose
8 mm
Length metric
228 mm
Net weight
1.004 kg
Neu im Jahr
2022
Number of oil droplets (min)
3 Drops
Operating pressure
6.3 bar
Power
370 Watt
Rotational speed
16000 RPM
Valve design
Lever
Width metric
39 mm
