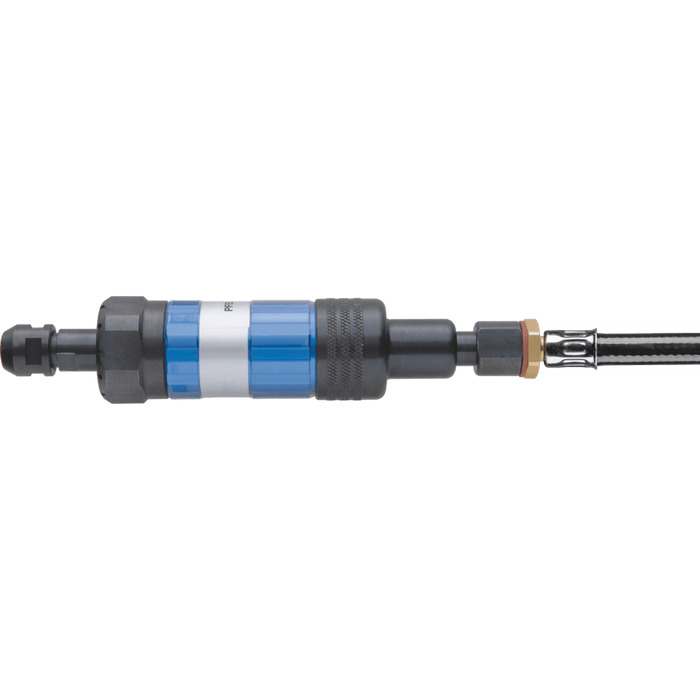

Compressed air straight grinder
PG 3/500 S PferdItem-no.: 1234538Supplier number: 80107050EAN: 4007220286326
Quantity:
1 PiecePackable
Price and stock visible after login
Description
The drive is equipped with a collet tool mounting for mounted tools. The exhaust air flow is at the front. The drive has to be used with oil. The air grinder has a push-pull throttle version. 3 m air supply hose with 1/4" male threaded connection and threaded quick coupling (STGI), 6 mm collet, 2 keys.
Attributes
Air consumption, at load
0.24 m³/min
Air consumption, idling
0.45 m³/min
Collet group
5
Exhaust air outlet
front
Height
32 mm
Incl. Ø collet [mm]
6 mm
Inner-ø supply air hose
8.5 mm
Length metric
162 mm
Number of oil droplets (min)
3 Drops
Operating pressure
6.3 bar
Power
200 Watt
Rotational speed
50000 RPM
Valve design
Slide
Width metric
32 mm
