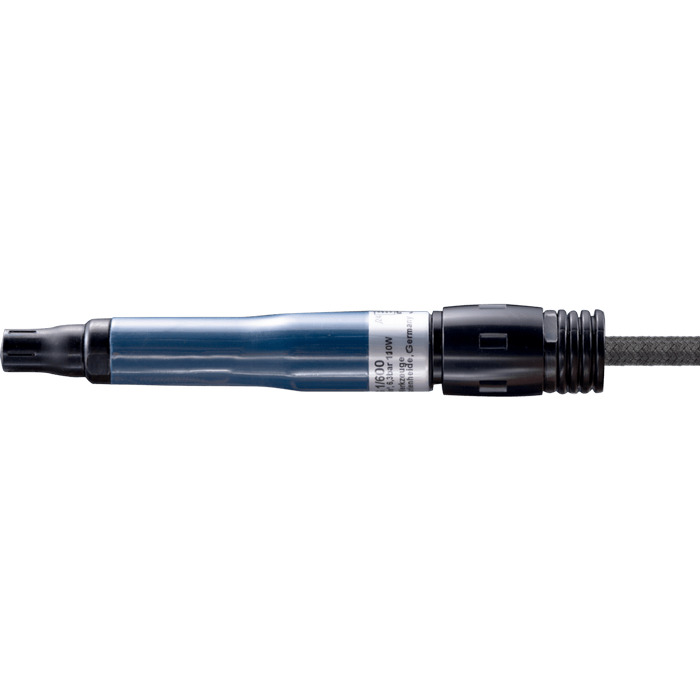

Compressed air straight grinder
PGAS 1/600 PferdItem-no.: 1234559Supplier number: 80700025EAN: 4007220507780
Quantity:
1 PiecePackable
Price and stock visible after login
Description
The drive is equipped with a collet tool mounting for mounted tools. The exhaust air flow of the air grinder is at the back. The drive has a high rotational speed and a detachable spindle sleeve. The air grinder has to be used with oil. The drive has a particularly slim and lightweight design. It has a ring throttle version.
Attributes
Air consumption, at load
0.2 m³/min
Air consumption, idling
0.28 m³/min
Collet group
1
Exhaust air outlet
back
Height
20 mm
Incl. Ø collet [mm]
3 mm
Inner-ø supply air hose
5 mm
Length metric
159 mm
Net weight
0.142 kg
Number of oil droplets (min)
1 Drops
Operating pressure
6.3 bar
Power
110 Watt
Rotational speed
60000 RPM
Valve design
Turn
Width metric
20 mm
