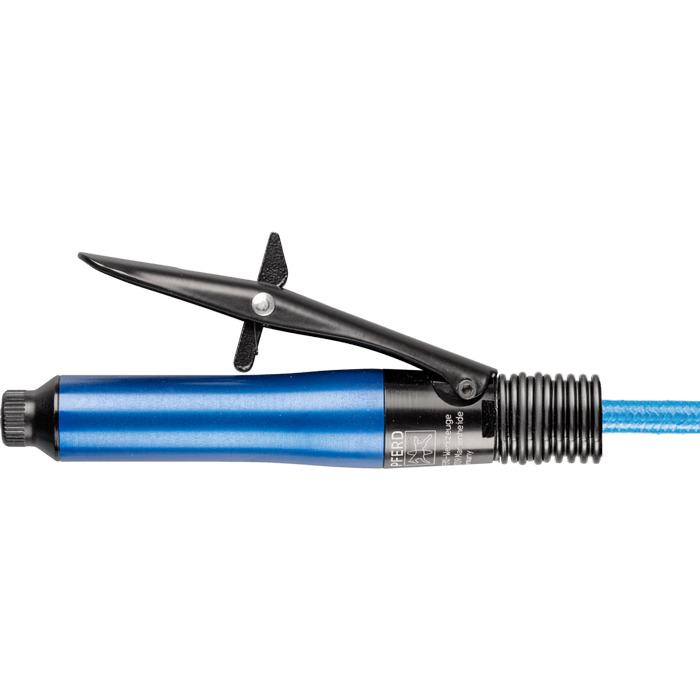

Compressed air straight grinder
PGAS 2/800 E-HV 110 Watt PferdItem-no.: 1516815Supplier number: 80105022EAN: 4007220221396
Quantity:
1 PiecePackable
Price and stock visible after login
Description
The drive is equipped with a collet tool mounting for mounted tools. The exhaust air flow of the air grinder is at the back. The light and easy-to-handle air grinder is characterized by its high rotational speed. It has a detachable spindle sleeve. The drive may only be used with oil. 0.75 m exhaust hose and 1.5 m air supply hose with 1/4" male threaded connection and threaded quick coupling (STGI), 3 mm collet, 2 keys. Due to the lever valve, the drive has a dead man's switch.
Attributes
Air consumption, at load
0.26 m³/min
Air consumption, idling
0.27 m³/min
Collet group
15
Exhaust air outlet
back
Height
23 mm
Incl. Ø collet [mm]
3 mm
Inner-ø supply air hose
4.8 mm
Length metric
145 mm
Neu im Jahr
2022
Number of oil droplets (min)
1 Drops
Operating pressure
6.3 bar
Power
110 Watt
Rotational speed
80000 RPM
Valve design
Lever
Width metric
23 mm
