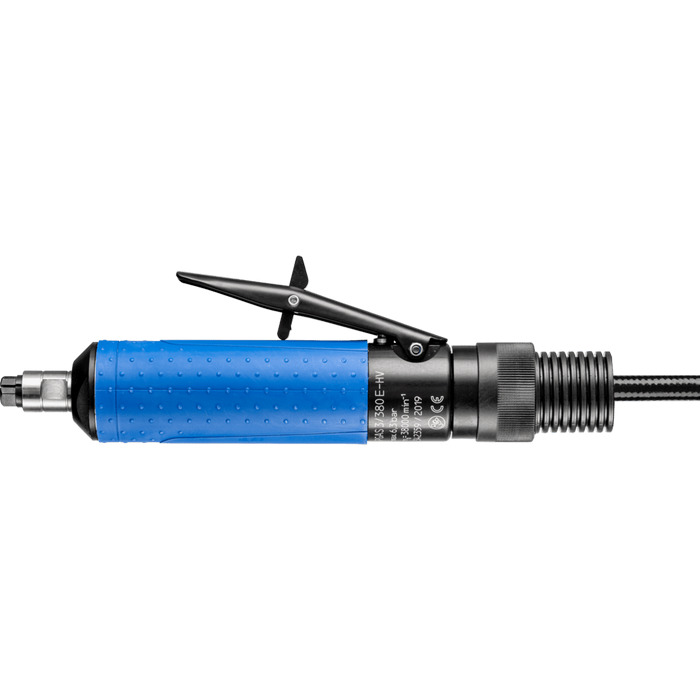

Compressed air straight grinder
PGAS 3/380 E-HV PferdItem-no.: 1516887Supplier number: 80105151EAN: 4007220221433
Quantity:
1 PiecePackable
Price and stock visible after login
Description
The drive is equipped with a collet tool mounting for mounted tools. The exhaust air flow of the air grinder is at the back. The air grinder may only be used with oil. 1 m exhaust hose and 2.5 m air supply hose with 1/4" male threaded connection and threaded quick coupling (STGI), 6 mm collet, 2 keys. Due to the lever throttle, the drive has a dead man's switch. It is equipped with an elastically mounted spindle and has a compact design.
Attributes
Air consumption, at load
0.6 m³/min
Air consumption, idling
0.7 m³/min
Collet group
6
Exhaust air outlet
back
Height
39 mm
Incl. Ø collet [mm]
6 mm
Inner-ø supply air hose
8 mm
Length metric
220 mm
Neu im Jahr
2022
Number of oil droplets (min)
2 Drops
Operating pressure
6.3 bar
Power
290 Watt
Rotational speed
38000 RPM
Valve design
Lever
Version
Elastic bearing
Width metric
39 mm
