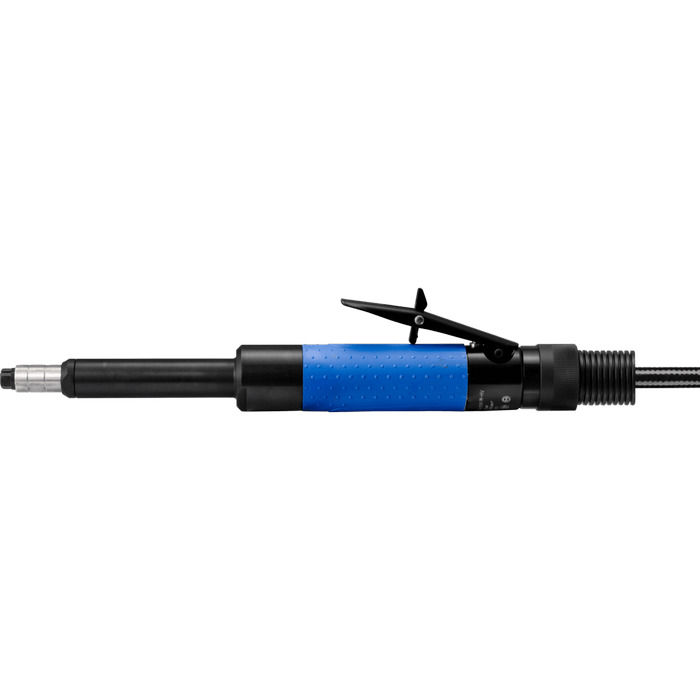

Compressed air straight grinder
PGAS 4-190 M-HV PferdItem-no.: 1570335Supplier number: 80105171EAN: 4007220419731
Quantity:
1 PiecePackable
Price and stock visible after login
Description
The drive is equipped with a collet tool mounting for mounted tools. The exhaust air flow of the air grinder is at the back. The air grinder may only be used with oil. 1 m exhaust hose and 2.5 m air supply hose with 1/4" male threaded connection and threaded quick coupling (STGI), 6 mm collet, 2 keys. Thanks to its medium-length design, the drive is ideal for use when access is restricted.
Attributes
Air consumption, at load
0.72 m³/min
Air consumption, idling
0.78 m³/min
Collet group
6
Exhaust air outlet
back
Height
39 mm
Incl. Ø collet [mm]
6 mm
Inner-ø supply air hose
8 mm
Length metric
335 mm
Net weight
1.198 kg
Neu im Jahr
2022
Number of oil droplets (min)
4 Drops
Operating pressure
6.3 bar
Power
370 Watt
Rotational speed
19000 RPM
Valve design
Lever
Version
with medium-length extension
Width metric
39 mm
