Description

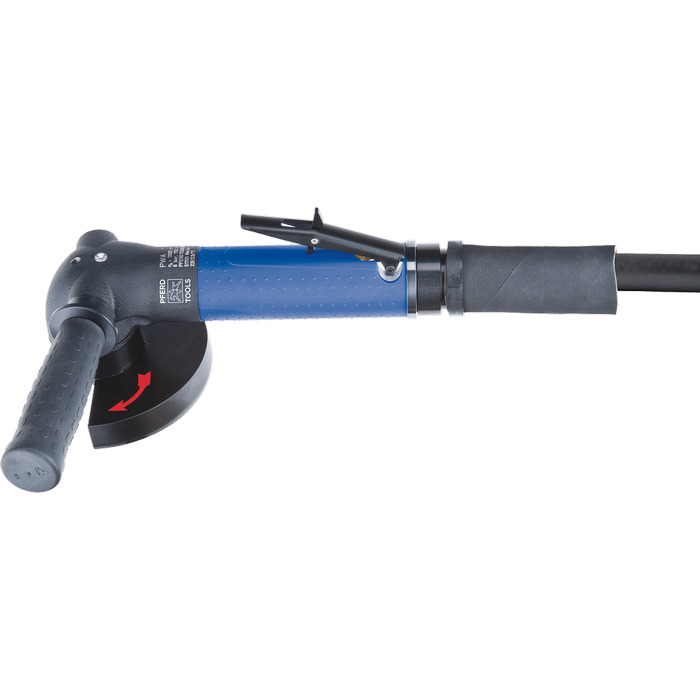

The drive has a threaded tool mounting for tools with female threads or flange mounting. The exhaust air flow of the air grinder is at the back. The robust design of the air grinder makes it suitable for heavy-duty use. The drive has to be used with oil. Due to the lever valve, the drive also has a dead man's switch. Max. tool diameter up to 125 mm. 1 m exhaust hose and 2.5 m air supply hose with 1/2" male threaded connection, 1 clamping nut, 2 flange screws, 2 spacer sleeves, 2 keys, guard, anti-vibration handle.
Attributes
Air consumption, at load
1.2 m³/min
Air consumption, idling
0.5 m³/min
Exhaust air outlet
back
Height
98 mm
Inner-ø supply air hose
13 mm
Length metric
285 mm
Neu im Jahr
2023
Number of oil droplets (min)
7 Drops
Operating pressure
6.3 bar
Power
1100 Watt
Rotational speed
12000 RPM
Valve design
Lever
Width metric
47 mm
Ø Thread
M14
Ø Tool holder
22.23 mm
