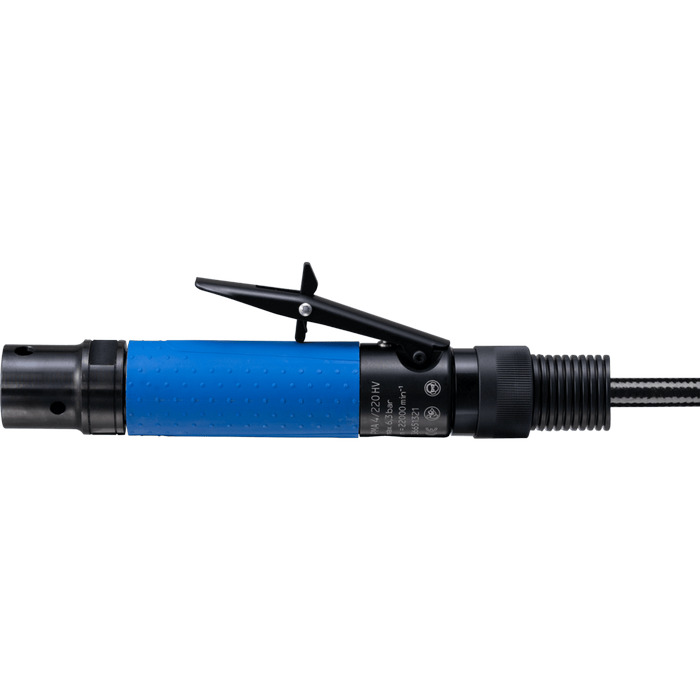

Compressed air motor
PMA 4/220 HV PferdItem-no.: 1470415Supplier number: 80703306EAN: 4007220388082
Quantity:
1 PiecePackable
Price and stock visible after login
Description
The compressed-air motor has a DIN 10 connection. The exhaust air flow of the air grinder is at the back. Suitable extensions: STV 9, STV 13, STV 20, STV 27. 1 m exhaust hose and 2.5 m air supply hose with 1/4" male threaded connection, 2 keys. Due to the lever valve, the drive has a dead man's switch.
Attributes
Air consumption, at load
0.87 m³/min
Air consumption, idling
0.98 m³/min
Connection coupling (DIN)
10
Exhaust air outlet
back
Height
39 mm
Inner-ø supply air hose
8 mm
Length metric
215 mm
Neu im Jahr
2022
Number of oil droplets (min)
4 Drops
Power
440 Watt
Rotational speed
22000 RPM
Valve design
Lever
Width metric
39 mm
