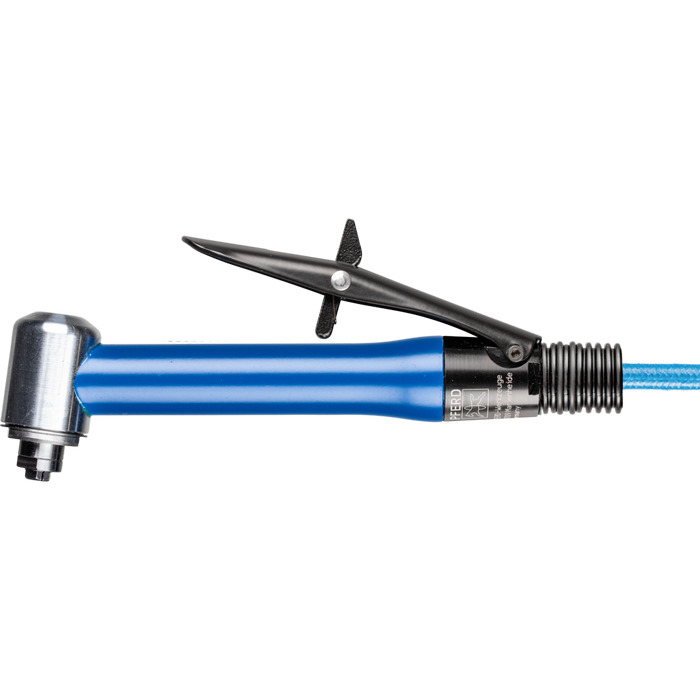

Compressed air angle grinder
PWAS 1/800 HV PferdItem-no.: 1516876Supplier number: 80205015EAN: 4007220381168
Quantity:
1 PiecePackable
Price and stock visible after login
Description
The drive is equipped with a collet tool mounting for mounted tools. The exhaust air flow of the air grinder is at the back. Light and easy to handle. It is the smallest, high-speed angle grinder. The drive has to be used with oil. 0.75 m exhaust hose and 1.5 m air supply hose with 1/4" male threaded connection and threaded quick coupling (STGI), 3 mm collet, 2 keys. Due to the lever valve, the drive has a dead man's switch.
Attributes
Air consumption, at load
0.14 m³/min
Air consumption, idling
0.15 m³/min
Collet group
2
Exhaust air outlet
back
Height
40 mm
Incl. Ø collet [mm]
3 mm
Inner-ø supply air hose
4.8 mm
Length metric
139 mm
Net weight
0.134 kg
Number of oil droplets (min)
1 Drops
Operating pressure
6.3 bar
Power
75 Watt
Rotational speed
80000 RPM
Valve design
Lever
Width metric
21 mm
