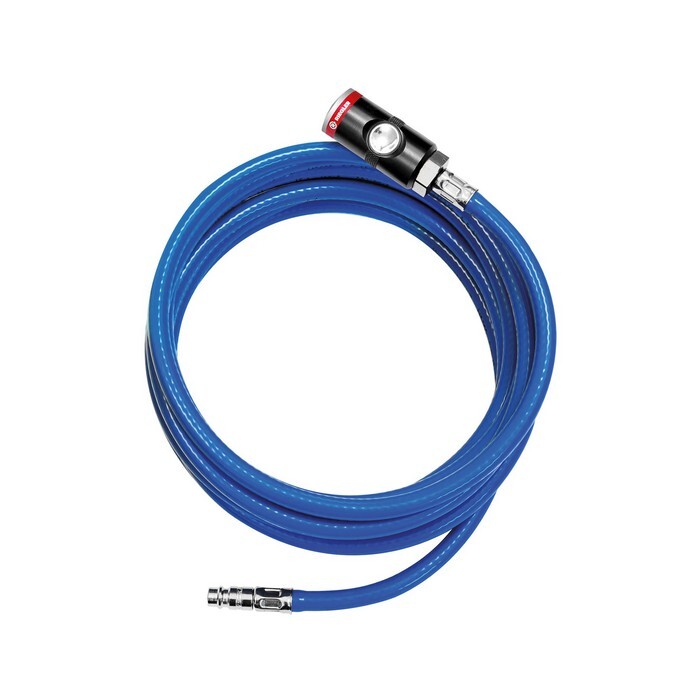

Compressed air hose set
SD9/15, 10 m, -10°C - +60°C soft PVC, safety coupling NW7.4Item-no.: 1245980Supplier number: DSB9-10SEAN: 4047322372534
Quantity:
1 Set
=
1 PiecePackable
Item available in 8 variants:
Price and stock visible after login
Description
Soft PVC workshop hose set, Safety coupling, Temperature max. 60 °C, Hose Ø 14.5x9, PN at 20 °C max. 12 bar, Length 10 m. Highly flexible hose for compressed air applications in workshop areas. Assembled with brass stem and brass quick disconnect coupling DN 7.2 optional with pushbutton safety coupling DN 7.4 and galvanised steel stem. Not suitable for direct attachment to pulsating tools. We recommend using our vibration dampers, according to ISO 6150 § 7.1.
Attributes
Core
Soft PVC, black
Exterior-Ø
14,5 mm
Hose length
10 m
Hose-Ø inside
9 mm
Hose-Ø outer
14,5 mm
Inner core
PVC
Internal-Ø
9 mm
Length (battery)
10 m
Material
PVC
Max. operating pressure at 20 °C
12 bar
Maximum temperature
60 °C
Minimum temperature
-20 °C
Operating pressure
12 bar
Operating temperature max.
60 °C
Operating temperature min.
-20 °C
Outer ceiling
Soft PVC, blue
Print carrier
High-strength polyester fabric
Version
Safety coupling DN 7.4
Wall thickness
2,75 mm
