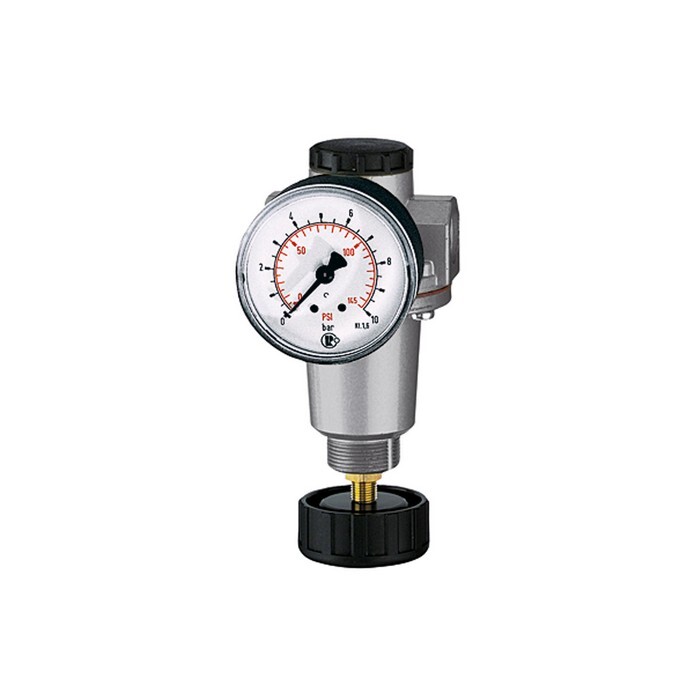

Druckregler Serie Standard
IG 1/4", 1100l/min, 0,5-10 bar BG1, inkl. Manometer, Vordruckunabh.Item-no.: 1116977Supplier number: 637.10 CEAN: 4047322107587
Quantity:
1 PiecePackable
Item available in 26 variants:
Price and stock visible after login
Description
Pressure regulator »Standard«, Size 1, G 1/4, Input pressure max. 16 bar, Medium temp. max. 60 °C, Control range 0.5 - 10 bar. Reversible diaphragm pressure regulators, independent of inlet pressure, with self-relieving design.
Attributes
A
54,0 mm
Ambient temperature
max. +80 °C
Ambient temperature max.
60 °C
Ambient temperature min.
-10 °C
BG
1
Control range
0,5 - 10 bar
Control range max.
10 bar
Control range min.
0,5 bar
DN
6 mm
Flow rate
1000 l/min
Flow rate measurement
with P1 = 8, P2 = 6 and pressure drop Δp = 1 bar
Housing
Die-cast zinc, painted silver
Inlet pressure max.
16 bar
Medium
Druckluft, neutrale Gase
Medium temperature
max. +60 °C
Medium temperature max.
60 °C
Medium temperature min.
-10 °C
Pressure gauge display max.
16 bar
Pressure gauge display min.
0 bar
Screw thread
G 1/4 ″
Screw thread mm
11,89
Sealing material
NBR
Series
Standard
Temperature range
max. +60 °C
b
129,5 mm
c
32,0 mm
d
97,5 mm
