Pressure regulator variobloc series
IG 1/4", 1600l/min, 0.5-16 bar incl. pressure gaugeItem-no.: 1117008Supplier number: VR 24customs tariff number: 84811099EAN: 4047322169301
Quantity:
1 PiecePackable
Item available in 15 variants:
Price and stock visible after login
Description

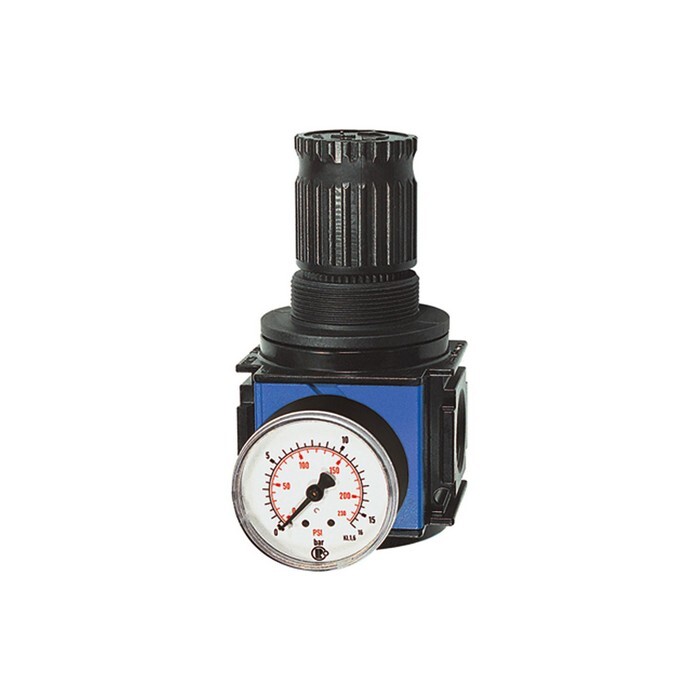

Pressure regulator »variobloc«, incl. pressure gauge, Size 1, G 1/4, Input pressure max. 25 bar, Control range 0.5 - 16 bar. Reversible diaphragm pressure regulators, independent of inlet pressure, with self-relieving design. The pressure setting can be locked by pushing the knob down. Approved series in modern industrial design, with the following key benefits: - Simple handling - Convenient modular assembly thanks to innovative fasteners - Excellent flow values
Attributes
A
48,0 mm
Ambient temperature
max. +80 °C
Ambient temperature max.
80 °C
BG
1
Control range
0,5-10 bar
Control range max.
16 bar
Control range min.
0,5 bar
Durchflusswertmessung
bei P<sub>1</sub> = 10 bar, P<sub>2</sub> = 6 bar und Druckabfall Δ<sub>p</sub> = 1 bar
Flow rate
2000 l/min
Flow rate at 6 bar
2000 Nl/min
Housing
Zinc die casting
Inlet pressure max.
25 bar
Input pressure
max. 25 bar
Medium temperature max.
80 °C
Membrane
NBR
Pressure gauge display max.
16 bar
Pressure gauge display min.
0 bar
Screw thread
G 1/4 ″
Screw thread mm
11,89
Sealing material
NBR
Spring cap
POM
Temperature range
max. +80 °C
b
98,0 mm
c
26,0 mm
