Spring-loaded thrust piece
GN 615.7-M6-S with limit switch NO contactST - Steel
Item-no.: 1208443Supplier number: 615.7-M6-Scustoms tariff number: 85365011EAN: 4045525605558
Quantity:
1 PiecePackable
Item available in 6 variants:
Price and stock visible after login
Description
Spring plungers GN 615.7 are used for end stops as well as contacts. Simultaneously an electrical control signal can be released from the built-in limit switch.
Attributes
End
13
Federdruck Anfang
6 N
Form
S - Normally open contact

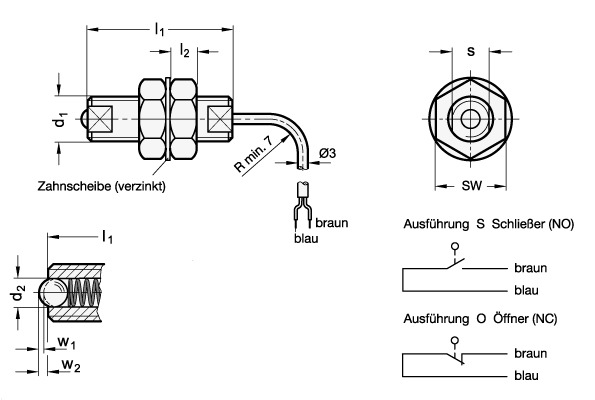

L1
33
L2
3.5
Material
ST - Steel
RoHS
Ja
SW
10
Screw thread d1
M 6
Spring pressure in N ≈start
6
Version
S - Normally open contact
Weight
0.042 kg
d2
3
s
5
w1 Switching range
0.3
w2 Spring range
0.8
