Spring-loaded thrust piece
GN 616.1-M12-S Bolt sealedST - Steel
Item-no.: 1351449Supplier number: 616.1-M12-Scustoms tariff number: 73181900EAN: 4045525418868
PU (Packaging): 10 PieceQuantity:
1 PiecePackable
Item available in 11 variants:
Price and stock visible after login
Description

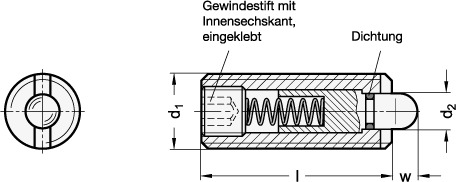

Spring plungers GN 616.1 are used for locking as well as for pressure and hold-off functions. Entry of liquids and dirt is prevented by the seal. The slit on the plunger side is used for screwing into pocket holes. For this, a special screwdriver is available as GN 611.5 (see table).
Attributes
Artikel-Nr. für Montagewerkzeug
611.5-M12
Artikel-Nr. für Schraubendreher
611.5-M12
End
50
Form
S - Steel, normal spring pressure
Length l
35
Material
ST - Steel
RoHS
Ja
Screw thread d1
M 12
Weight
0.019 kg
d2
6
w Spring travel
4
