Druckstück, federnd, zum Einpressen
GN 614.4-6-NI Bolzen EdelstahlItem-no.: 1208311Supplier number: 614.4-6-NIcustoms tariff number: 73182900EAN: 4045525862890
PU (Packaging): 25 PieceQuantity:
1 PiecePackable
Item available in 10 variants:
Price and stock visible after login
Description
Spring plungers GN 614.4 are used for locking, as pressing and back-off pins, but also as impact dampers. A tolerance of H7 for the location hole of d1 is recommended.

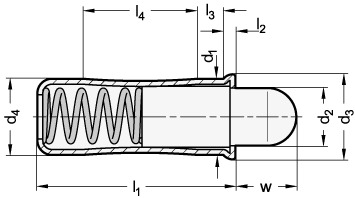

Attributes
End
12
Federdruck Anfang
6.1 N
L1
15
L2
1
Material (bolt)
NI - Stainless steel
Outer diameter d1
6
RoHS
Ja
Spring pressure in N ≈start
6.1
Weight
0.002 kg
d2
4.8
d3
6.5
d4
6
l2 ≈
1
l3
2.3
l3 ≈
2.3
l4
8.2
l4 ≈
8.2
w Spring travel
5.5
