Filterregler Edelstahl
IG 1/4", 2500l/min, 1,0-15 bar regel. mit manu. Ablassventil, Edelstahl- Mano.Item-no.: 1239243Supplier number: 572.14 Dcustoms tariff number: 84811019EAN: 4047322101967
Quantity:
1 PiecePackable
Item available in 2 variants:
Price and stock visible after login
Description

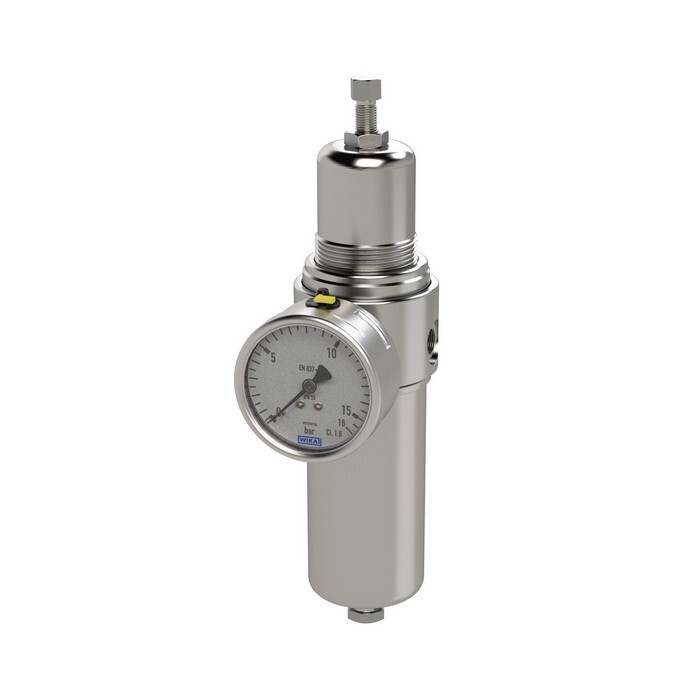

Stainless steel filter regulator, 1.4404, with secondary venting (reversible), incl. press. gauge, G 1/4, Control range 1 - 15 bar. Stainless steel filter regulators with self-relieving (not for liquid media) containing no non-ferrous metals for use in the food processing, chemical, mining, plant construction and special machinery industries as well as in the medical technology.
Attributes
A
65 mm
Ambient temperature max.
80 °C
Condensate drain
Manual drain valve
Control range max.
15 bar
Control range min.
1 bar
Durchflusswertmessung
bei P<sub>1</sub> = 8 bar, P<sub>2</sub> = 6 bar und Druckabfall Δ<sub>p</sub> ≤ 1 bar
Filter fineness
50 µm
Flow rate
800 l/min
Housing
Stainless steel 1.4404 (AISI 316L)
Inlet pressure max.
30 bar
Medium temperature max.
80 °C
Membrane
PTFE on NBR carrier
Riegler article number
101207
Screw thread
G 1/4
Sealing material
FKM
b
250 mm
c
125 mm
