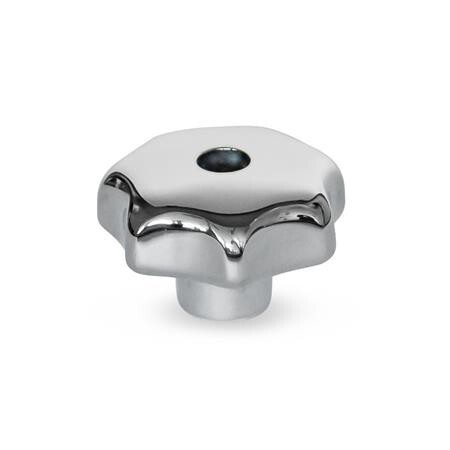

Stainless steel star grip (A4), polished
GN 6336-A4-32-M6-D-PLA4 - Stainless steel investment casting
Item-no.: 1483834Supplier number: 6336-A4-32-M6-D-PLcustoms tariff number: 73181639EAN: 4045525665910
Quantity:
1 PiecePackable
Item available in 8 variants:
Price and stock visible after login
Description
Star knobs GN 6336 satisfy the dimensions of the DIN 6336 but differ in terms of their non-scooping geometry, which makes cleaning easier and helps prevent possible build-up of dirt. They are suitable for areas with special hygiene requirements and, thanks to the material used, for applications in highly corrosive environments.
Attributes
Form
D - with threaded through-hole
Handle diameter d1
32
Material
A4 - Stainless steel investment casting
RoHS
Ja
Screw thread d2
M 6
Surface
PL - polished
Weight
0.054 kg
d3
12
h1
20
h2
9
t2
10
