Screw-in hose nozzle G 3/8 for
Hose LW 4 mm SW 19 MSItem-no.: 1372744Supplier number: MS2393804customs tariff number: 74122000EAN: 4047322459457
Quantity:
1 PiecePackable
Item available in 43 variants:
Price and stock visible after login
Description
Screw-in hose connector, G 3/8 o., for hose I.D. 4 mm, AF 19, brass, Max. working pressure 25 bar, Max. operating temp. 150 °C.
Attributes
For hose
LW 4 mm

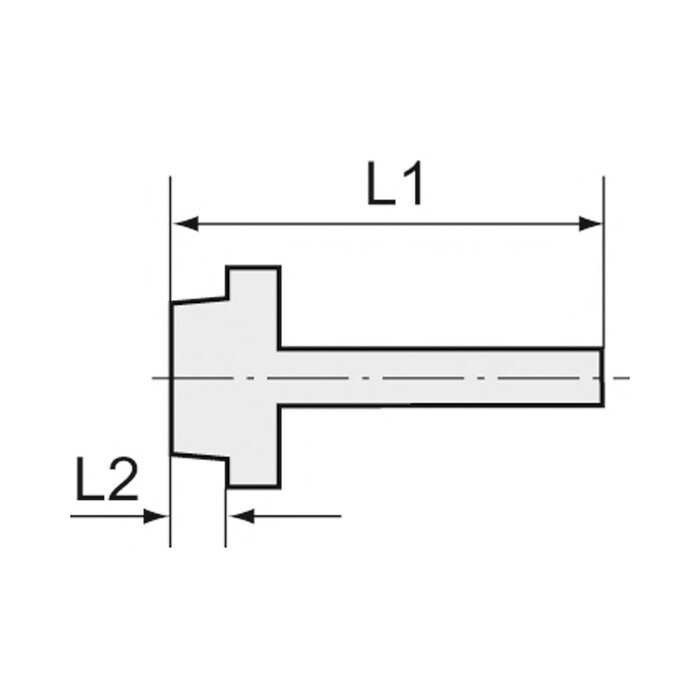

L1
40,0 mm
L2
9,0 mm
Material
Brass CW614N
Operating temperature max.
150 °C
Riegler article number
130993
SW
19 mm
Screw thread
G 3/8
Working pressure max.
25 bar
