Screw-in hose nozzle M5 a. for
Hose LW 3 MS vern.Item-no.: 1373741Supplier number: MSN239M503customs tariff number: 74122000EAN: 4047322495462
Quantity:
1 PiecePackable
Item available in 9 variants:
Price and stock visible after login
Description
Screw-in hose connector, M5 o., for hose I.D. 3, nickel-plated brass, Max. working pressure 25 bar, Max. operating temp. 150 °C. Suitable for air, water, oil, steam, etc.
Attributes
For hose
LW 3 mm

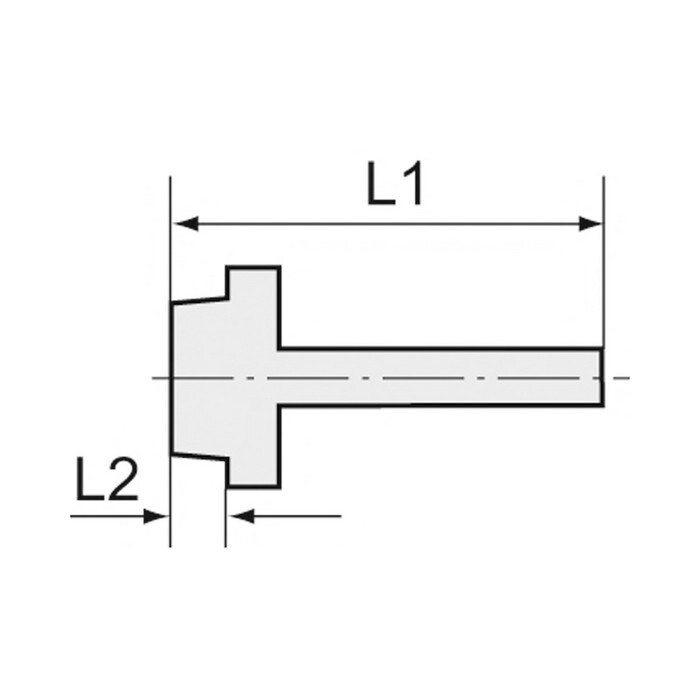

L1
16,0 mm
L2
5,0 mm
Material
Nickel-plated brass CW614N (galvanised nickel-plated)
Operating temperature max.
150 °C
Riegler article number
135340
SW
7 mm
Screw thread
M5
Working pressure max.
25 bar
