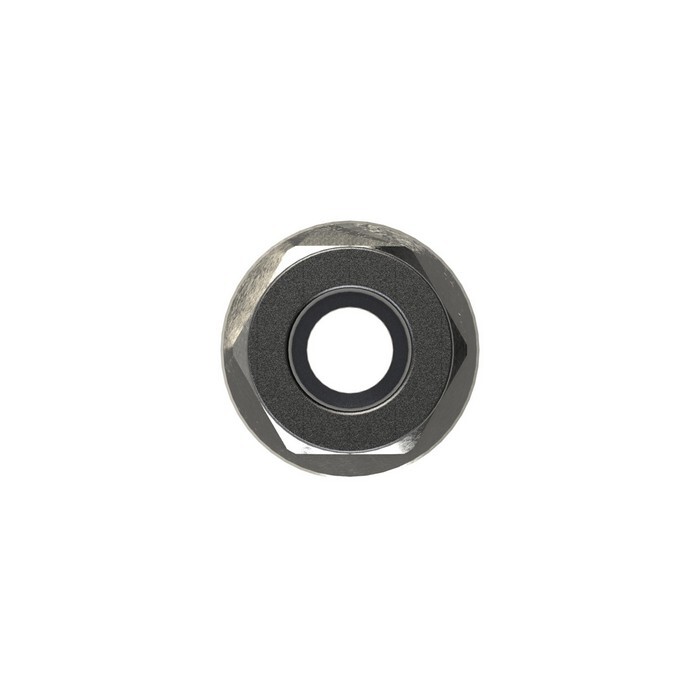

Straight screw-in connector
AG 1/8" cyl. x SD8, L 25.4 mm, O-ring click-clock, nickel-plated brassItem-no.: 1114598Supplier number: 745.018-8EAN: 4047322208727
Quantity:
1 PiecePackable
Item available in 24 variants:
Price and stock visible after login
Description
Straight push-in fitting »click-clock«, G 1/8 o., for hose exterior Ø 8 mm, Working pressure -0.99 to 16 bar, nickel-plated brass . The advanced version of our highly successful push-in fittings series manufactured in nickel-plated brass. Advantages of this new, optimised series:
- Much easier connection and disconnection of the hose, even with repeated mounting
- Can also be used for non-calibrated hoses
- Suitable for vacuum operation
Attributes
Clamping ring
Stainless steel
External hexagon
with
For outer hose Ø
8 mm
Hexagon socket
5 mm
L1
25,4 mm
Loosening ring
Hostaform
Material
Nickel-plated brass
Medium
Compressed air
Operating temperature max.
80 °C
Operating temperature min.
-20 °C
Product range
click-clock
Recommended hose
PA, PU
Riegler article number
108557
SW
13 mm
Screw thread
G 1/8
Sealing material
NBR
Series
click-clock
Working pressure max.
16 bar
Working pressure min.
-0,99 bar
