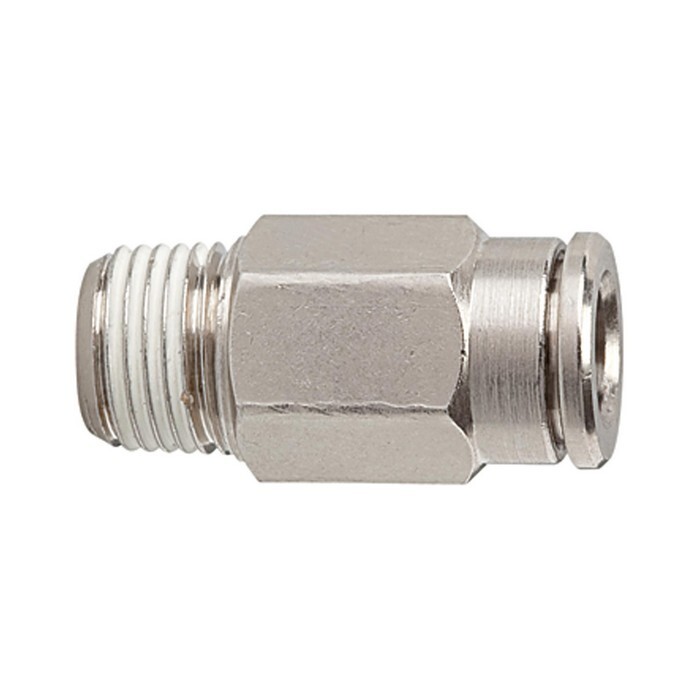

Screw-in fitting, metallica series
AG 1/8 "R, SD8, L 27.5 mm, straight Nickel-plated brassItem-no.: 1176126Supplier number: 844.018-8customs tariff number: 74122000EAN: 4047322278935
Quantity:
1 Piece
=
1 BundlePackable
Item available in 12 variants:
Price and stock visible after login
Description
Straight push-in fitting »metallica«, R 1/8 o., for hose exterior Ø 8 mm, Working pressure -0.98 to 16 bar, nickel-plated brass . All parts with a parallel thread are supplied with an FPM O-ring while the conical threads are coated with preCOTE 5 dispersion, all fittings in this series can thus also be used at high temperatures (medium compressed air).
Attributes
Clamping ring
Stainless steel
External hexagon
with
For outer hose Ø
8 mm

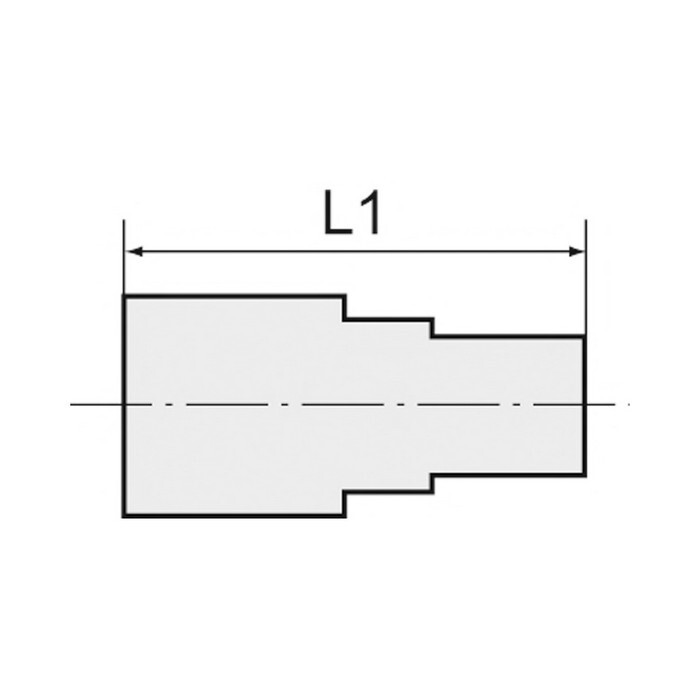

L1
27,5 mm
Loosening ring
Nickel-plated brass
Material
Nickel-plated brass
Medium
Compressed air
Operating temperature max.
150 °C
Operating temperature min.
-20 °C
Product range
metallica
Riegler article number
108884
SW
13 mm
Screw thread
R 1/8
Working pressure max.
16 bar
Working pressure min.
-0,98 bar
