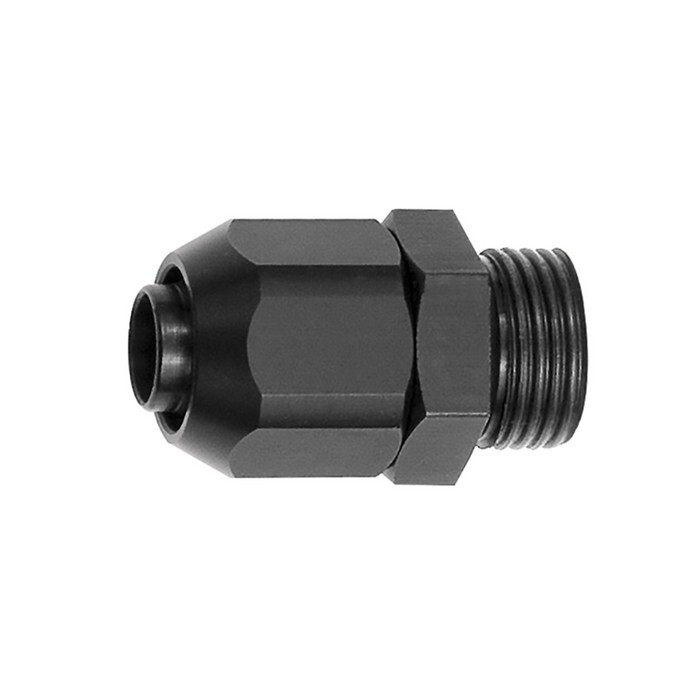

Screw-in fitting for
PVC pneumatic hose 9x11.6 G 1/4Item-no.: 1375663Supplier number: 11.0419/1-1customs tariff number: 76169990EAN: 4047322607377
Quantity:
1 PiecePackable
Item available in 14 variants:
Price and stock visible after login
Description
Screw-in fitting for PVC pneumatic hose 9x11.6, Aluminium/plastic, Temperature -10 °C to 70 °C, PN -0,95 - 15 bar, G 1/4.
Attributes
For pvc hose
9x11,6
L
31,0 mm
L1
17,0 mm
L2
9,0 mm
Material
Aluminium / plastic
Medium
Air
Operating temperature max.
70 °C
Operating temperature min.
-10 °C
Riegler article number
152984
SW
17 mm
SW 1
19 mm
Screw thread
G 1/4
Working pressure max.
15 bar
Working pressure min.
-0,95 bar
