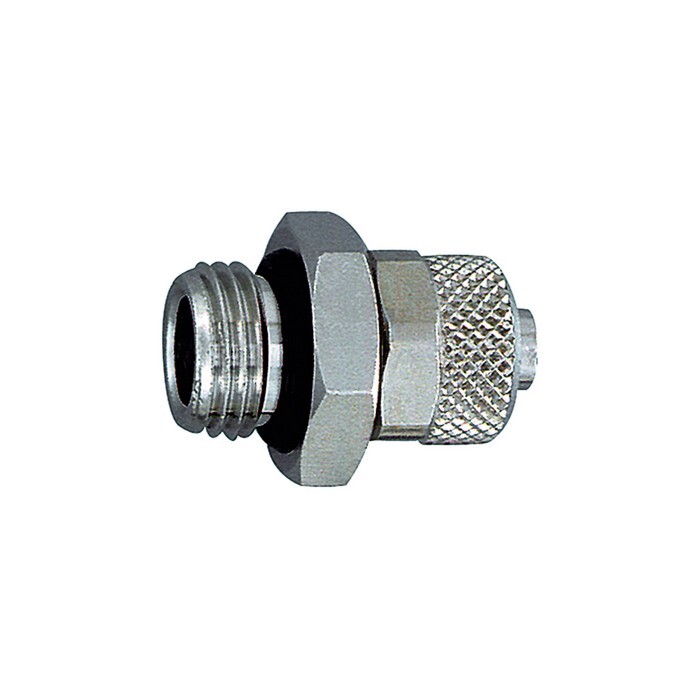

Straight screw-in fitting
AG 1/8", SD6/4, L 25 mm, O-ring Nickel-plated brassItem-no.: 1114729Supplier number: 11.118-6customs tariff number: 74122000EAN: 4047322014151
PU (Packaging): 10 PieceQuantity:
1 PiecePackable
Item available in 14 variants:
Price and stock visible after login
Description
Straight screw-in fitting, with O-ring, G 1/8 o., for hose 6/4 mm, AF 13, Working pressure max. 18 bar, nickel-plated brass.
Attributes
Dichtmaterial
NBR
For hose
6/4 mm
L1
25,0 mm
Material
Nickel-plated brass
O-ring
with
Operating temperature max.
80 °C
Operating temperature min.
-20 °C
Riegler article number
110472
SW
13 mm
Screw thread
G 1/8
Working pressure max.
18 bar
für Schlauch-Außen-Ø
6 mm
