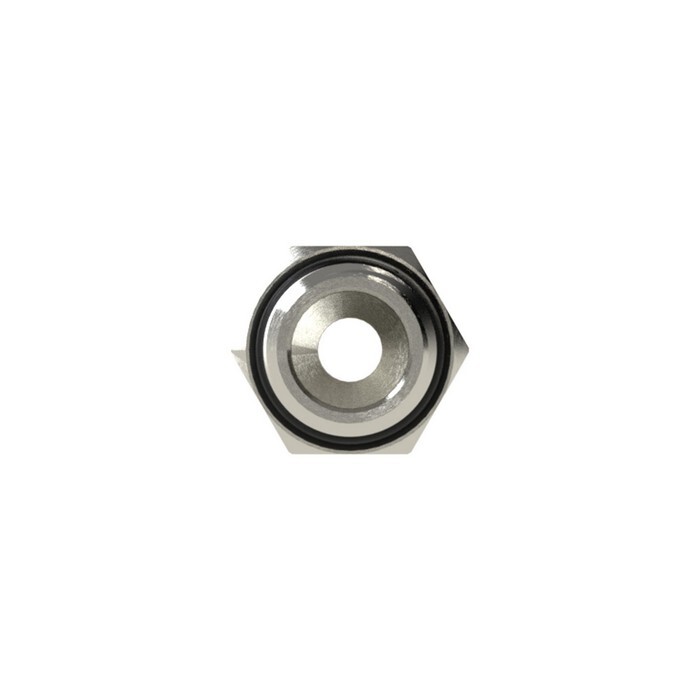

Straight screw-in fitting
G1/2-10/8 Ms.nickel-platedItem-no.: 1114724Supplier number: 11.112-10customs tariff number: 74122000EAN: 4047322014069
Quantity:
1 PiecePackable
Item available in 14 variants:
Price and stock visible after login
Description
Straight screw-in fitting, with O-ring, G 1/2 o., for hose 10/8 mm, AF 24, Working pressure max. 18 bar, nickel-plated brass.
Attributes
Dichtmaterial
NBR
For hose
10/8 mm
L1
33,0 mm
Material
Nickel-plated brass
Operating temperature max.
80 °C
Operating temperature min.
-20 °C
Riegler article number
110484
SW
24 mm
Screw thread
G 1/2
Working pressure max.
18 bar
für Schlauch-Außen-Ø
10 mm
