Socket reversible ratchet, square
1/2" 14x18 mm chrome-plated Hazet 6404Item-no.: 1529467Supplier number: 6404customs tariff number: 82079099EAN: 4000896027545
PU (Packaging): 10 PieceQuantity:
1 PiecePackable
Price and stock visible after login
Description

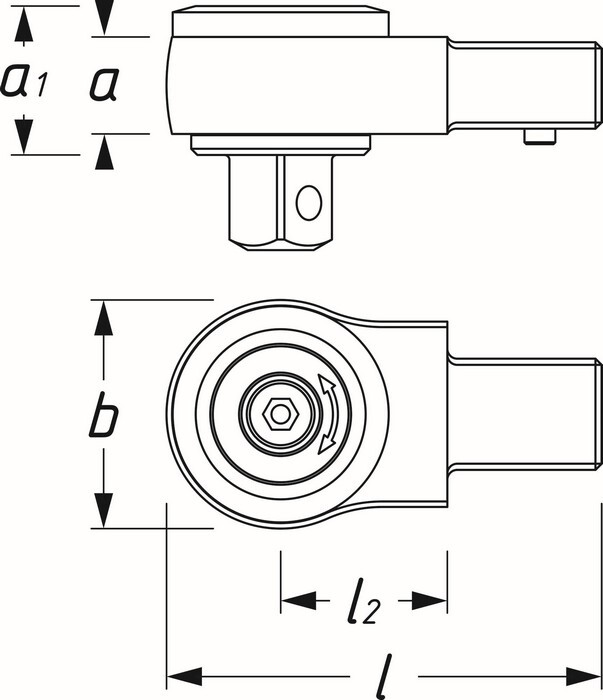

· Fine tooth, 72 teeth ∙ Operating angle 5° · Drop forged · Surface: chrome-plated · DIN 3120, ISO 1174-1 · Made in Germany · Drive: 14 x 18 mm insert square, solid · Output: 1/2 inch (12.5 mm) square, solid · Dimensions / length: 70.5 mm · Net weight: 0.27 kg · For manual operation · Number of teeth: 72 (Opening angle 5°) · Inside micrometre of the adjusting tool l2: 27 mm · Head Thickness a: 15.7 mm · Head thickness (a1): 24.1 mm · Head Width b: 37 mm.
Attributes
Actuation angle
5 °
Adjustment tool length l2
27 mm
Anzugsmoment maximal [Nm]
300 Nm
Dimensions
70.5 mm
Drive
14 x 18 mm solid square insert
Drive square
1/2 ″
Drive square mm
12,5 mm
Head thickness (a1)
24.1 mm
Head thickness a
15.7 mm
Head width b
37 mm
Holder mm
14 x 18 mm
Length (battery)
70.5 mm
Material
Chrome vanadium
Net weight (kg)
0.27 kg
Norm
ISO 1174-1
Number of teeth
72 Teeth
Output
1/2 inch (12.5 mm) solid square
Series
auya_6401
Surface
chrome-plated
