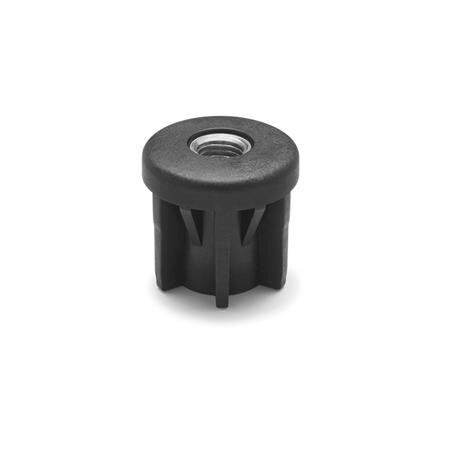

Socket for round tube

GN 448-D30-D28-M8 Elesa 320231
PA - plastic, polyamide
Item-no.: 1203055Supplier number: 448-D30-D28-M8EAN: 4045525521049

PU (Packaging): 48 PieceQuantity: ​​ 1 PiecePackable
Item available in 209 variants:
Short-term Sourcing

Description
Insert bushing GN 448 offer the possibility of mounting screws in profiled tubes. They are held inside the tube by the slightly tapered insert section. The values given in the table regarding the static load capacity serve as a guide only and if these are exceeded serious permanent deformation or breakage of the insert bushings could occur.
Attributes
Inner diameter d2
D 28
L1
31
L2
6
Material
PA - plastic, polyamide
Outer diameter d1
D 30
RoHS
Ja
Screw thread d3
M 8
Weight
0.024 kg
