Ganter

Socket for round tubes

GN 448-D42-D36-M10
PA - plastic, polyamide
Item-no.: 1350307Supplier number: 448-D42-D36-M10customs tariff number: 84879090EAN: 4045525096356

PU (Packaging): 48 PieceQuantity: ​​ 1 PiecePackable
Item available in 209 variants:
Immediately Available

Description

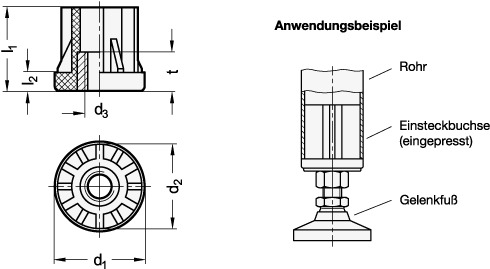

Insert bushing GN 448 offer the possibility of mounting screws in profiled tubes. They are held inside the tube by the slightly tapered insert section. The values given in the table regarding the static load capacity serve as a guide only and if these are exceeded serious permanent deformation or breakage of the insert bushings could occur.
Attributes
Inner diameter d2
D 36
L1
38
L2
8
Material
PA - plastic, polyamide
Outer diameter d1
D 42
RoHS
Ja
Screw thread d3
M 10
Static load capacity in NM8 ... M16
5000
Statische Belastbarkeit M8 ... M16
5000 N
Weight
0.047 kg
passend für Konstruktionsrohre GN 990
D 42
