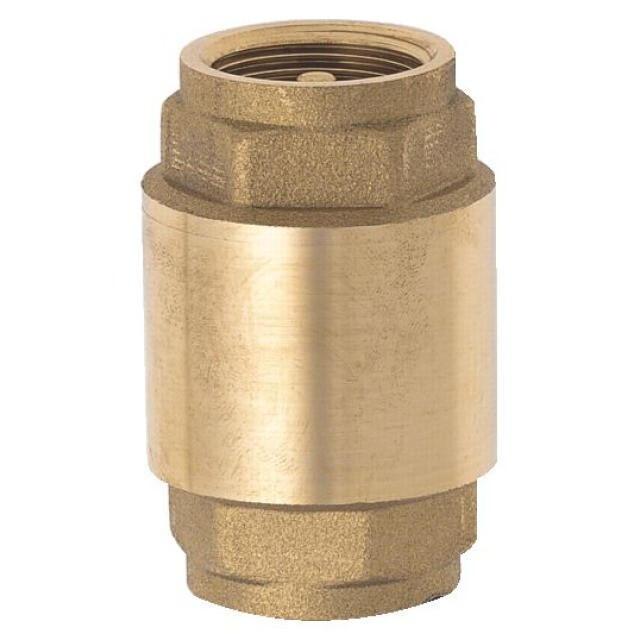

Euro non-return valve, heavy
IG G 3", max. 12 bar, MS GEKA 5630Item-no.: 1465929Supplier number: 5630EAN: 4015933027068
Quantity: ​​
1 PiecePackable​
Price and stock visible after login
Description
Euro-Rückschlagventil, schwer IG G 3", max. 12 bar, MS GEKA 5630
Attributes
A
141,5 mm
Internal thread (inch)
G 3" Inch
Internal thread (mm)
85,56 mm
Material
Brass, spring-loaded valve and closing spring: chrome steel
Max. operating pressure
12 bar
Operating temperature
Water from 0 °C to + 90 °C, air from -20 °C to +100 °C
b
140,5 mm
