Pferd

Extension

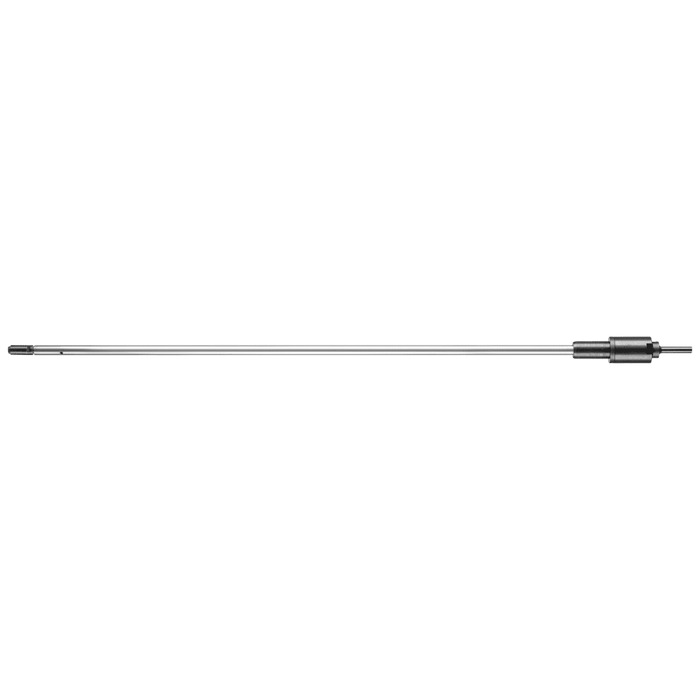

SPVH 9 L800-3 S6 Pferd
Item-no.: 1355945Supplier number: 87101502customs tariff number: 84831095EAN: 4007220938218

Quantity: ​​ 1 PiecePackable
Short-term Sourcing

Description
With drive spindle extensions, shanks of grinding and milling tools can be extended. They allow access to difficult-to-reach areas and particularly deep cores. They are clamped into the collet of the machine (air or electric grinder) or into the flexible shaft handpiece. They must also be guided by hand. With drive spindle extensions, shanks of grinding and milling tools can be extended. They allow access to difficult-to-reach areas and particularly deep cores. They are clamped into the collet of the machine (air or electric grinder) or into the flexible shaft handpiece. They must also be guided by hand. Extension for drive spindles for manual application with a diameter of 9 mm, a length of 800 mm, a tool mounting of 3 mm and a shank holder of 6 mm. 2 keys DM SW 6/7 mm and 1 collet 3 mm.
Attributes
Collet group
2
Incl. Ø collet [mm]
3
Length, mounting pin
28 mm
Length, total
906 mm
Max. RPM
25000 RPM
Net weight
0.52 kg
RPM, max.
25000 RPM
Ø Shank holder [mm]
6
Ø Spindle, max.
9 mm
Ø Tool holder
3 mm
