Products
Pferd

Extension

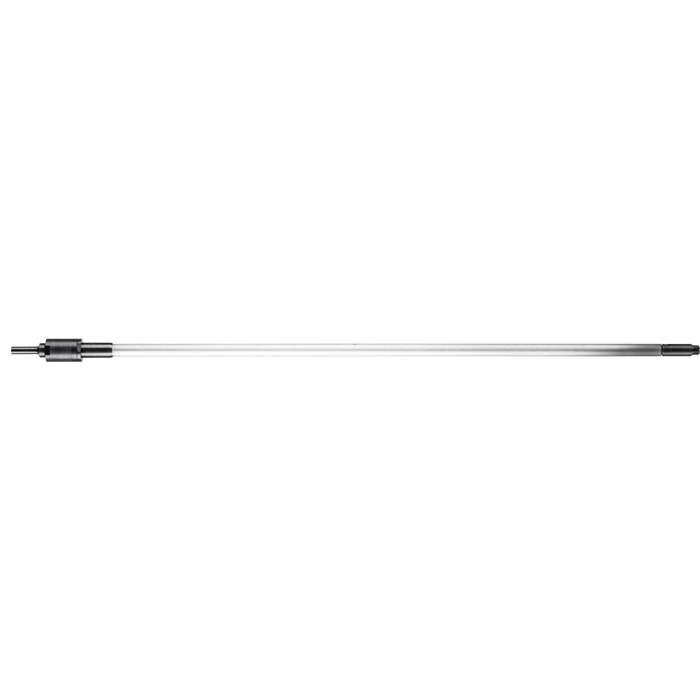

SPVH13 L1000-6 S6 Pferd
Item-no.: 1355940Supplier number: 87101309customs tariff number: 84831095EAN: 4007220936313

Quantity: ​​ 1 PiecePackable
Short-term Sourcing

Description
With drive spindle extensions, shanks of grinding and milling tools can be extended. They allow access to difficult-to-reach areas and particularly deep cores. They are clamped into the collet of the machine (air or electric grinder) or into the flexible shaft handpiece. They must also be guided by hand. With drive spindle extensions, shanks of grinding and milling tools can be extended. They allow access to difficult-to-reach areas and particularly deep cores. They are clamped into the collet of the machine (air or electric grinder) or into the flexible shaft handpiece. They must also be guided by hand. Extension for drive spindles for manual application with a diameter of 13 mm, a length of 1000 mm, a tool mounting of 6 mm and a shank holder of 6 mm. 2 keys DM SW 6/7 mm and 1 collet 3 mm.
Attributes
Collet group
10
Incl. Ø collet [mm]
6
Length, mounting pin
28 mm
Length, total
1106 mm
Max. RPM
25000 RPM
Net weight
0.95 kg
RPM, max.
25000 RPM
Ø Shank holder [mm]
6
Ø Spindle, max.
13 mm
Ø Tool holder
6 mm
