STV9 L800 PferdItem-no.: 1355935Supplier number: 80900340customs tariff number: 84831095EAN: 4007220035115
Quantity:
1 PiecePackable
Price and stock visible after login
Description

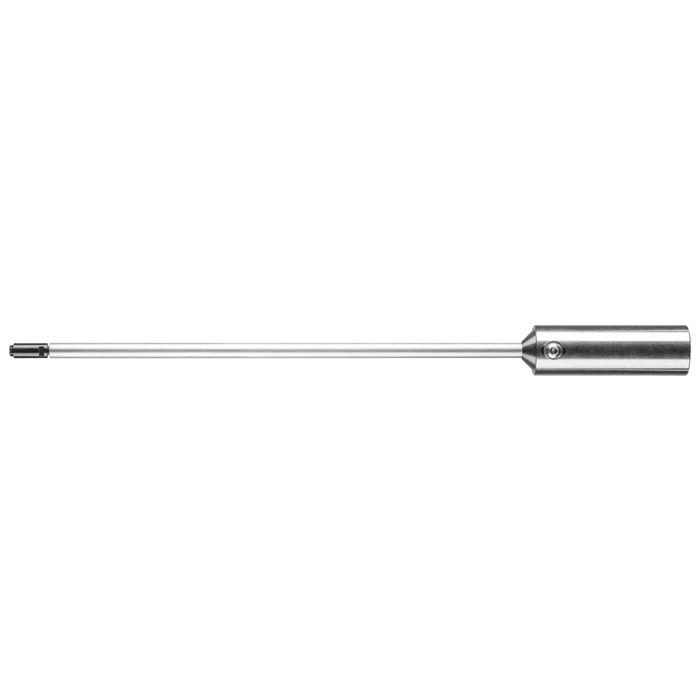

Rigid extensions are suitable for hard-to-reach applications. Version with diameter of 9 mm and length of 800 mm. Collet 3 mm, 2 DM SW 6/8 mm, 1 SKS 4 mm
Attributes
Bending radius, max.
150 mm
Drive-side coupling, DIN
10
Length metric
800 mm
Net weight
0.64 kg
Rotational speed range, up to
25000 RPM
Series
byly_STV8090
Ø
9 mm
Ø External metric
9 mm
