Spring cotter pin
GN 1024-NI-2-D stainless steelNI - Stainless steel
Item-no.: 1343244Supplier number: 1024-NI-2-Dcustoms tariff number: 73209090EAN: 4045525000964
Quantity:
1 PiecePackable
Item available in 23 variants:
Price and stock visible after login
Description
Spring cotter pins GN 1024 are used for the axial fixing of bolts and axes and as distortion guard, e.g. for crown nuts DIN 935. Owing to their double winding, spring cotter pins of type D have a flatter spring characteristic and are therefore easier to install. Also, a retaining rope including a key ring can be attached to the double winding to safeguard the spring cotter pins against loss.

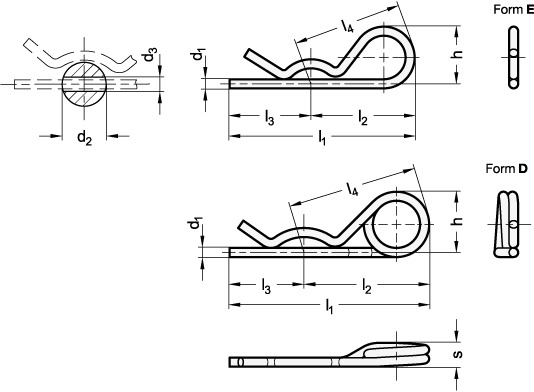

Attributes
Dismantling
9
For bolt Ø
12
Forces in N ≈mounting
10
Form
D - with double winding
Kräfte in N Montage
10
L1
56
L2
31
Material
NI - Stainless steel
Outer diameter d2
8 ... 14
RoHS
Ja
Weight
0.003 kg
d1
2
d3 Recomm. mounting Ø
2.5
d3 empf. Aufnahme-Ø
2.5
h
14
l3
25
l4
33
s
5.5
