Spring cotter pin
GN 1024-ST-4-EST - Steel
Item-no.: 1343260Supplier number: 1024-ST-4-Ecustoms tariff number: 73209090EAN: 4045525064263
Quantity:
1 PiecePackable
Item available in 23 variants:
Price and stock visible after login
Description
Spring cotter pins GN 1024 are used for the axial fixing of bolts and axes and as distortion guard, e.g. for crown nuts DIN 935. Owing to their double winding, spring cotter pins of type D have a flatter spring characteristic and are therefore easier to install. Also, a retaining rope including a key ring can be attached to the double winding to safeguard the Spring cotter pin against loss.

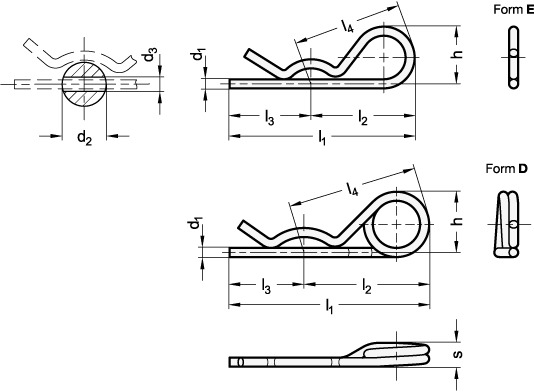

Attributes
Dismantling
170
For bolt Ø
20
Forces in N ≈mounting
210
Form
E - with single winding
Kräfte in N Montage
210
L1
74
L2
44
Material
ST - Steel
Outer diameter d2
16 ... 20
RoHS
Ja
Weight
0.016 kg
d1
4
d3 Recomm. mounting Ø
4.5
d3 empf. Aufnahme-Ø
4.5
h
27
l3
30
l4
48
