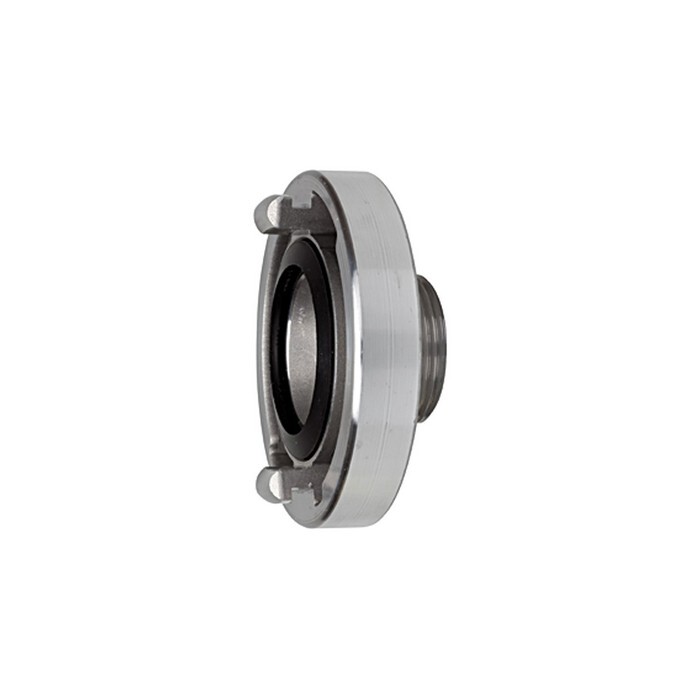

Fixed coupling
1.1/4" AG, Storz C-52 Forged aluminium, PN16Item-no.: 1117502Supplier number: 2403.66114EAN: 4047322254458
Quantity:
1 PiecePackable
Price and stock visible after login
Description
Storz adapter, Aluminium, Storz size 52-C, Tappet distance 66 mm, G 1 1/4 ET, Operating pressure max. 16 bar, Temp. -40°C to 110°C. High-quality series in forged aluminium. For quick and simple hose connections. User friendly, the coupling elements are joined without damaging the seal. Applications: Water lines, industrial plant engineering, firefighting.
Attributes
Bracket spacing
66 mm
External thread
G 1 1/4 AG
Material
Aluminium
Max. operating pressure
16 bar
Operating temperature max.
110 °C
Operating temperature min.
-40 °C
Sealing material
NBR
Storz size
52-C
