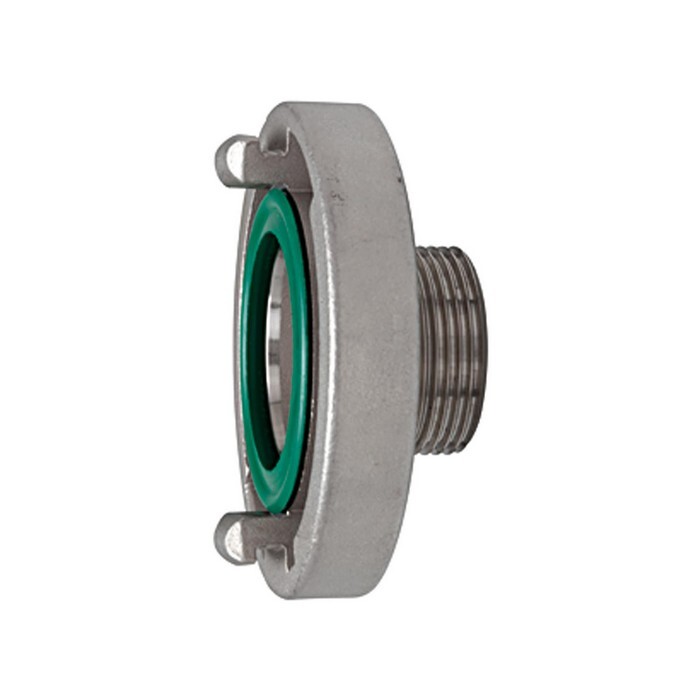

Festkupplung
Storz 100 KA 115 mm, AG 4", 16 bar Edelstahl V4AItem-no.: 1735093Supplier number: 3403.11540EAN: 4047322256346
Quantity:
1 PiecePackable
Item available in 16 variants:
Price and stock visible after login
Description
Storz adapter, Stainless steel V4A, Storz size 100, Tappet distance 115 mm, G 4 ET, Operating pressure max. 16 bar. High-quality series in V4A stainless steel. For quick and simple hose connections. User friendly, the coupling elements are joined without damaging the seal. Applications: Industrial plant engineering, shipbuilding, chemical industry.
Attributes
Bracket spacing
115 mm
External thread
G 4 AG
Material
Stainless steel V4A
Max. operating pressure
16 bar
Operating temperature max.
200 °C
Operating temperature min.
-15 °C
Sealing material
FKM
Storz size
100
