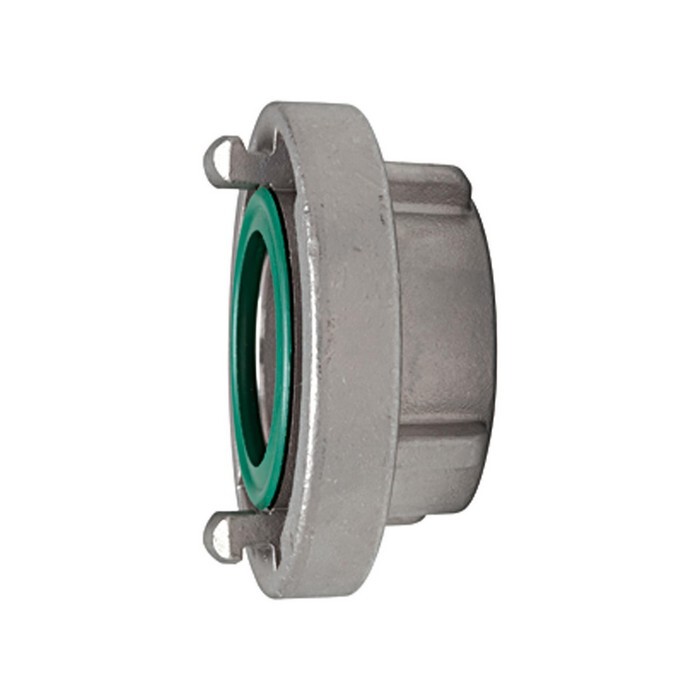

Festkupplung
Storz 32 KA 44 mm, IG 1.1/4" IG, 16 bar Edelstahl V4AItem-no.: 1732998Supplier number: 3404.44114EAN: 4047322256506
Quantity:
1 PiecePackable
Price and stock visible after login
Description
Storz adapter, Stainless steel V4A, Storz size 32, Tappet distance 44 mm, G 1 1/4 IT, Operating pressure max. 16 bar. High-quality series in V4A stainless steel. For quick and simple hose connections. User friendly, the coupling elements are joined without damaging the seal. Applications: Industrial plant engineering, shipbuilding, chemical industry.
Attributes
Betriebsdruck max.
16 bar
Betriebstemperatur max.
200 °C
Betriebstemperatur min.
-15 °C
Dichtmaterial
FKM
Innengewinde
G 1 1/4 IG
Knaggenabstand
44 mm
Material
Edelstahl V4A
Storz-Größe
32
