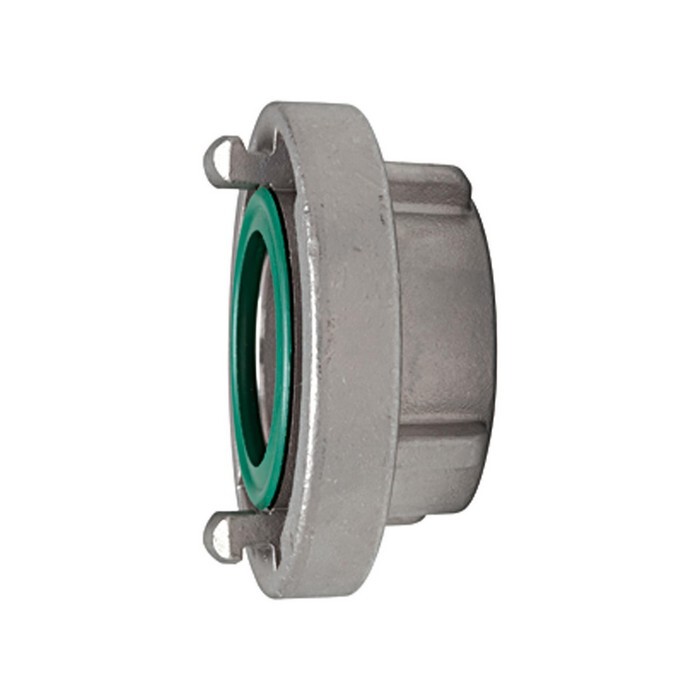

Festkupplung
Storz 52-C KA 66 mm, IG 2" IG, 16 bar Edelstahl V4AItem-no.: 1733003Supplier number: 3404.6620EAN: 4047322256568
Quantity:
1 PiecePackable
Price and stock visible after login
Description
Storz adapter, Stainless steel V4A, Storz size 52-C, Tappet distance 66 mm, G 2 IT, Operating pressure max. 16 bar. High-quality series in V4A stainless steel. For quick and simple hose connections. User friendly, the coupling elements are joined without damaging the seal. Applications: Industrial plant engineering, shipbuilding, chemical industry.
Attributes
Bracket spacing
66 mm
Internal thread
G 2 IG
Material
Stainless steel V4A
Max. operating pressure
16 bar
Operating temperature max.
200 °C
Operating temperature min.
-15 °C
Sealing material
FKM
Storz size
52-C
