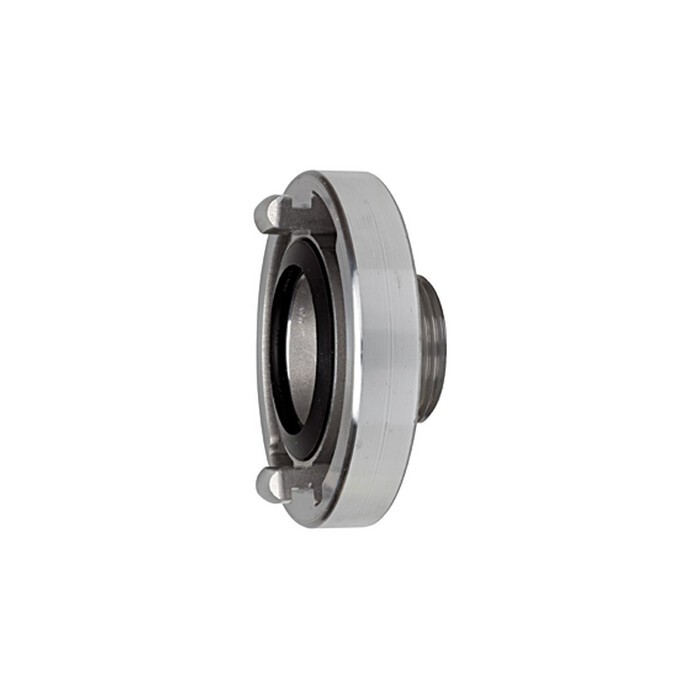

Fixed coupling with external thread
AG1", 31 mm cleats, Storz D Aluminium, forged bent parts PN16Item-no.: 1174544Supplier number: 2403.3110EAN: 4047322254397
Quantity:
1 PiecePackable
Price and stock visible after login
Description
Storz adapter, Aluminium, Storz size 25-D, Tappet distance 31 mm, G 1 ET, Operating pressure max. 16 bar, Temp. -40 °C to 110 °C. High-quality series in forged aluminium. For quick and simple hose connections. User friendly, the coupling elements are joined without damaging the seal. Applications: Water lines, industrial plant engineering, firefighting.
Attributes
Bracket spacing
31 mm
External thread
G 1 AG
External thread mm
25
Material
Aluminium
Max. operating pressure
16 bar
Nominal size
D
Operating temperature max.
110 °C
Operating temperature min.
-40 °C
Sealing material
NBR
Storz size
25-D
