Filter Serie Standard
G 3/8, BG 2 Polycarbonatbehälter mit SchutzkorbItem-no.: 1733032Supplier number: 650 B/S.2EAN: 4047322722049
Quantity:
1 PiecePackable
Price and stock visible after login
Description
Filter »Standard«, PC container, Protective cage, 5 µm, Size 2, G 3/8, Input pressure max. 16 bar, Med./ambient temp. max. 60 °C. Centrifugal separators with a Cellupor filter element.
Attributes

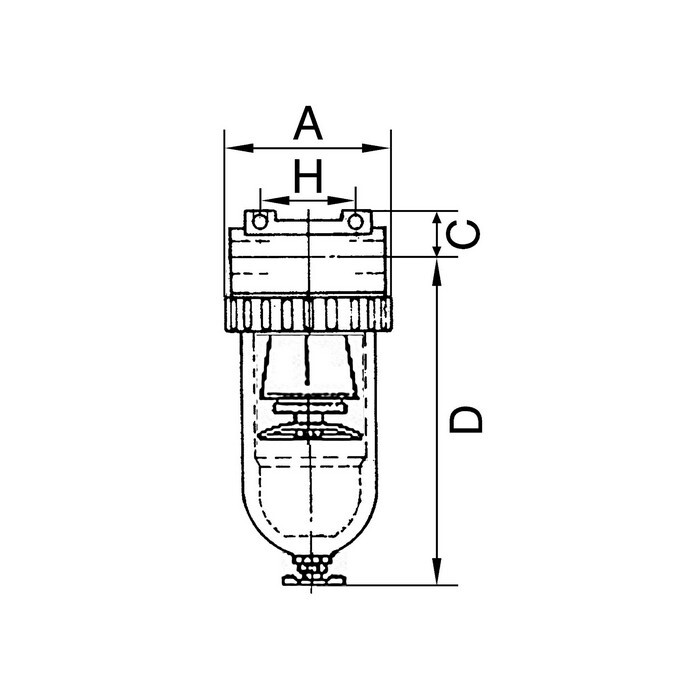

A
70,0 mm
Ambient temperature max.
60 °C
Ambient temperature min.
-10 °C
BG
2
Condensate drain
Semi-automatic
Container
Polycarbonate container with protective cage
DN
10
Filter fineness
5 µm
Flow rate
3100 l/min
Housing
Die-cast zinc, painted silver
Inlet pressure max.
16 bar
Medium temperature max.
60 °C
Medium temperature min.
-10 °C
Screw thread
G 3/8
Series
Standard
c
16,0 mm
d
145,7 mm
h
50,0 mm
