Filter Serie Standard
IG 1/2", 4000l/min, max 16 bar, BG3 mit Polycarbonatbe., halbauto. Ablassv.Item-no.: 1117168Supplier number: 650 C/K-HAEAN: 4047322110129
Quantity:
1 PiecePackable
Price and stock visible after login
Description

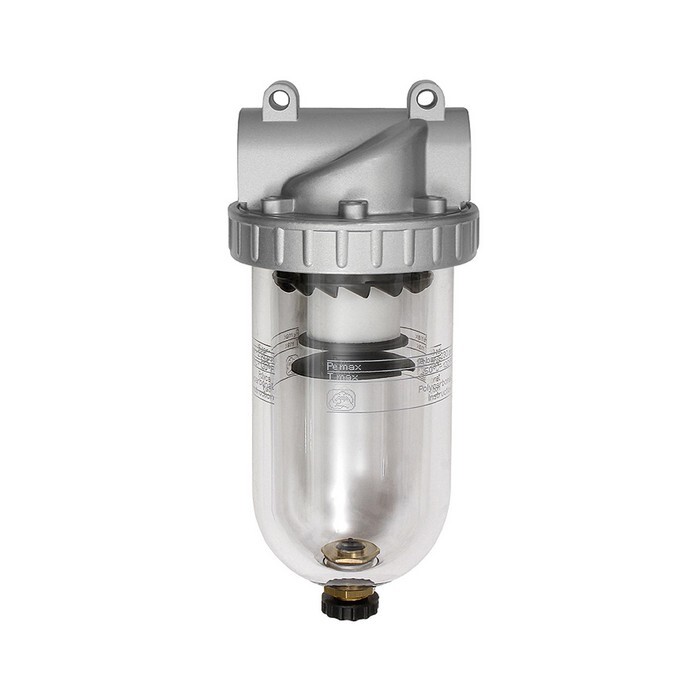

Filter »Standard« with polycarbonate container, 5 µm, Size 3, G 1/2, Input pressure max. 16 bar, Med. / ambient temp. max. 60 °C. Centrifugal separators with a sintered filter element.
Attributes
A
79,0 mm
Ambient temperature
max. +60 °C
Ambient temperature max.
60 °C
Ambient temperature min.
-10 °C
BG
3
Condensate drain
Semi-automatic
Container
Polycarbonate container
DN
15 mm
Filter fineness
5 µm
Flow rate
4000 l/min
Housing
Die-cast zinc, painted silver
Inlet pressure (metal container)
max. 25 bar
Inlet pressure (plastic container)
max. 16 bar
Inlet pressure max.
16 bar
Input pressure
max. 16 (plastic containers)
Medium temperature
max. +60 °C
Medium temperature max.
60 °C
Medium temperature min.
-10 °C
Screw thread
G 1/2 ″
Screw thread mm
19,17
Series
Standard
Temperature range
max. +60 °C
c
18,0 mm
d
168,4 mm
h
50,0 mm
