Filterregler Serie GA
5 µm, BG 300, G 1/4, 1,5 - 9 bar Schutzkorb, Haltewinkel, vollau. Ablass.Item-no.: 1529598Supplier number: GAC 11 AEAN: 4047322666725
Quantity:
1 PiecePackable
Price and stock visible after login
Description
Filter regulator »GA«, with PC container, Protective cage, Mounting bracket, 5 µm, Size 300, G 1/4, Input pressure max. 10 bar. Reversible diaphragm pressure regulators, independent of inlet pressure, with self-relieving design, combined with a centrifugal separator. The pressure setting can be locked by pushing the button down.
Attributes

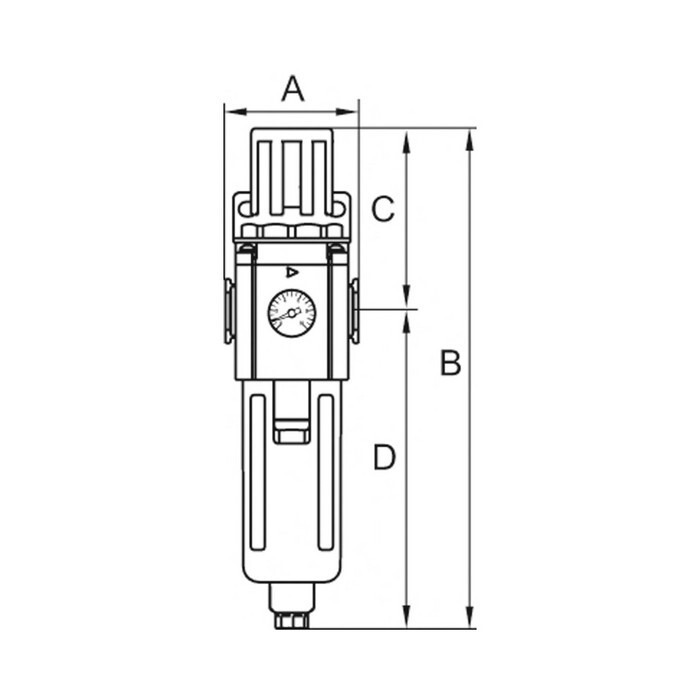

A
62,5 mm
Condensate drain
Fully automatic
Container
Polycarbonate container with protective cage
Control range max.
9 bar
Control range min.
1,5 bar
Filter fineness
5 µm
Flow rate
1750 l/min
Housing
Die-cast aluminium
Inlet pressure max.
10 bar
Product range
GA
Riegler article number
178475
Screw thread
G 1/4
Sealing material
NBR
Size
300
Spring cap
POM
Temperature range max.
70 °C
Temperature range min.
-5 °C
b
247 mm
c
89 mm
d
158 mm
