Filterregler Serie GA
5 µm, BG 300, G 3/8, 1,5 - 9 bar Schutzkorb, Haltewinkel, vollau. Ablass.Item-no.: 1529599Supplier number: GAC 12 Acustoms tariff number: 84811005EAN: 4047322666732
Quantity:
1 PiecePackable
Item available in 10 variants:
Price and stock visible after login
Description

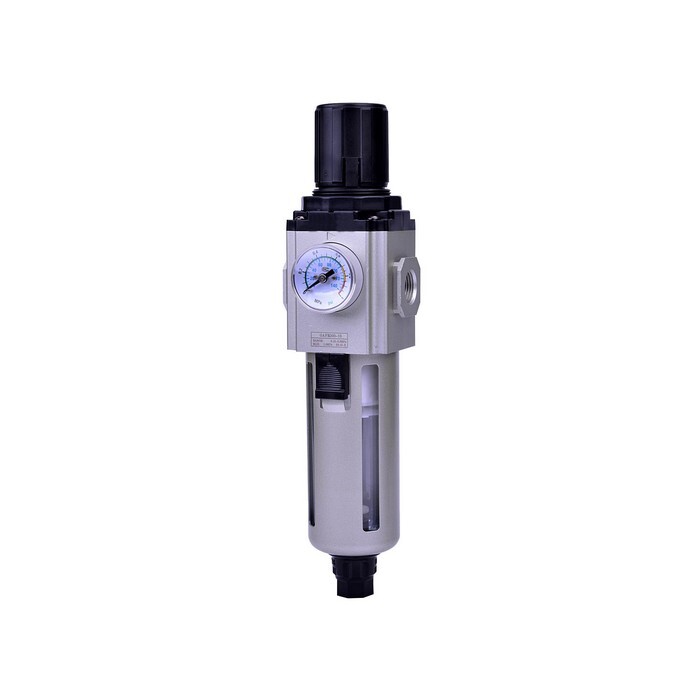

Filter regulator »GA«, with PC container, Protective cage, Mounting bracket, 5 µm, Size 300, G 3/8, Input pressure max. 10 bar. Reversible diaphragm pressure regulators, independent of inlet pressure, with self-relieving design, combined with a centrifugal separator. The pressure setting can be locked by pushing the button down.
Attributes
A
62,5 mm
BG
300
Condensate drain
Fully automatic
Container
Polycarbonate container with protective cage
Control range max.
9 bar
Control range min.
1,5 bar
Durchflusswertmessung
bei P<sub>1</sub> = 8 bar, P<sub>2</sub> = 6 bar und Druckabfall Δ<sub>p</sub> = 1 bar
Filter fineness
5 µm
Flow rate
2100 l/min
Housing
Die-cast aluminium
Inlet pressure max.
10 bar
Product range
GA
Riegler article number
178476
Screw thread
G 3/8
Sealing material
NBR
Size
300
Spring cap
POM
Temperature range max.
70 °C
Temperature range min.
-5 °C
b
247,0 mm
c
89,0 mm
d
158,0 mm
