WEICONLOCK® AN 305-73 Flächendichtung Technisches Datenblattcnco_de_tds_weiconlock_an_305-73_flaechendichtung.pdf
254.17 kB
Surface seal

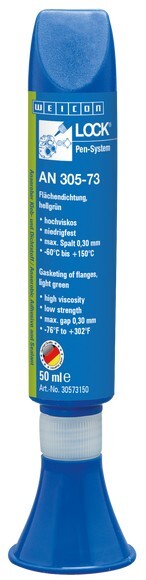

50 ml pen, low solid, high viscosity Weicon AN 305-73Item-no.: 1123204Supplier number: 10019945customs tariff number: 35069900EAN: 4024596009526
PU (Packaging): 12 PieceQuantity:
1 PiecePackable

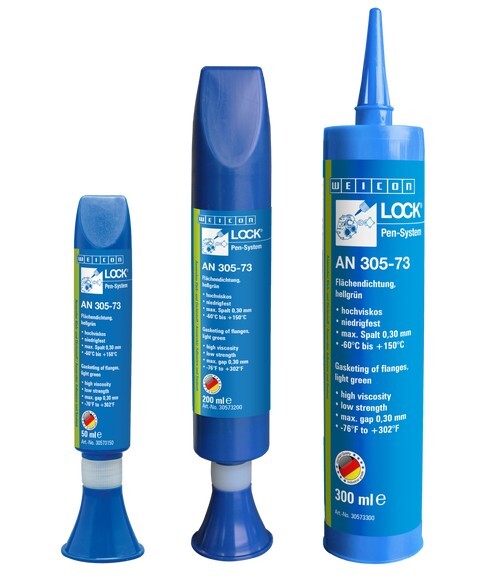

Item available in 3 variants:
Price and stock visible after login
Description
· high viscosity · low strength · easy disassembly
Attributes
Breaking torque
6 - 10 Nm
Breite
30.0
Colour
light green
Construction material class|DIN 4102
B2
End hardness|(100 % of strength)
12 Hours
Fluoreszierend
ja
Further torque
2 - 5 Nm
Gap bridging up to max.
0,3 mm
Hand strength
20 - 40 Min.
Lieferumfang
Klebstoff
Sales bundle
Tube
Shear strength Nmm² (DIN 54452)
4 - 6 N/mm²
Temperature resistance
-60°C to 150°C
Viscosity
17.000 - 50.000 ht mPa·s
